Description

Descriptions

  • Grade S  Shackles - Yellow Screw Pin
  • Beaver Grade S Shackles are a rated shackle that meet the requirement of AS 2741.
  • Grade S Shackles are the most common shackles used in lifting applications, with a high strength to size ratio.
  • Because the pin holds more load than the body, the pin diameter is larger than the body diameter
  • For the same W.L.L, they are smaller than grade M
  • Grade S Shackles come in two colour configurations:

- Beaver Standard Grade S: Yellow pin
- Beaver Colour Coded Grade S: Body and pin colour coded to AS 2741, for easy match to components

  • Available in both Dee and Bow configurations
  • Available in both Screw Pin and Safety Pin type







Specifications

  • AIMS SKU A0103014
  • Brand Beaver
  • Model Number 244316M
  • WLL (kg) 3200
  • Size (mm) 16 x 19
  • Net Weight (kg) 0.63
  • Type Bow Shackle Safety Pin
  • Finish Galvanised
SKU: A0103014 On Sale

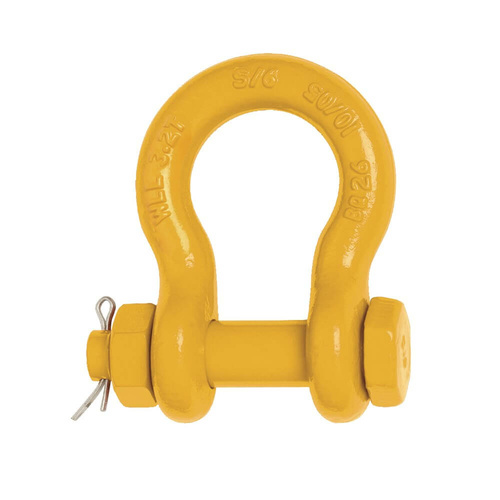

Beaver GradeS Safety Pin Bow Shackle Yellow-16mmX19mmX3200kg 3.2TonneWLL

Beaver Bow Shackle Galvanised Safety Pin

$11.41
$13.42
