Austlift Oblong Eye Bolt / Swivel Lifting Point 30mm x 5.3T - 10.6T

Description

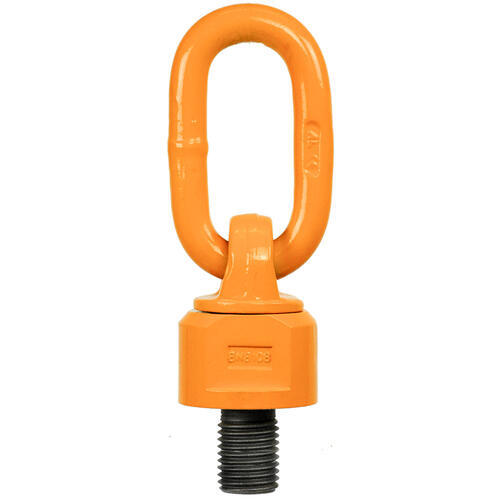

Austlift Oblong Eye Bolt / Swivel Lifting Point

Swivel ring bolt accordingly to EN 818-4 for load ring and AS2318 for the swivel component.
Used as a swiveling load ring capable of rotating under load due to ball bearing rings ideally suited for dynamic lifting in any position.
Made from G80 alloy steel with yellow painted finish, manufactured with an oval link, and available in metric thread sizes from 8mm to 36mm.
Marked with working load limit in tonne, nominal size in millimetre, quality mark and supplier identification.
Proof tested to 1.25 x Working load limit.
Test certificates are available upon request.

Specifications

AIMS SKU A0168903

Brand Austlift

Model Number 605130

Size (mm) 30

Weight (kg) 2.17

C (mm) 23.5

A (mm) 85

F (mm) 20

E (mm) 35

b (mm) 66

g (mm) 96.5

T (mm) 80.5

w (mm) 40

90° WLL (4:1) 5.3T

0° WLL (4:1) 10.6T

Type Eye Bolt
