Austlift Oblong Eye Bolt Long Series 30mm, Thread Length 70mm

Description

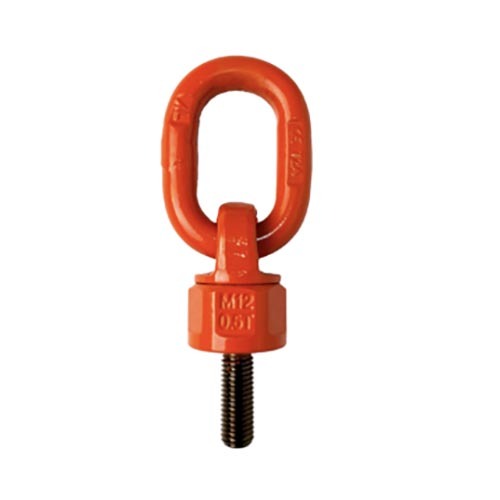

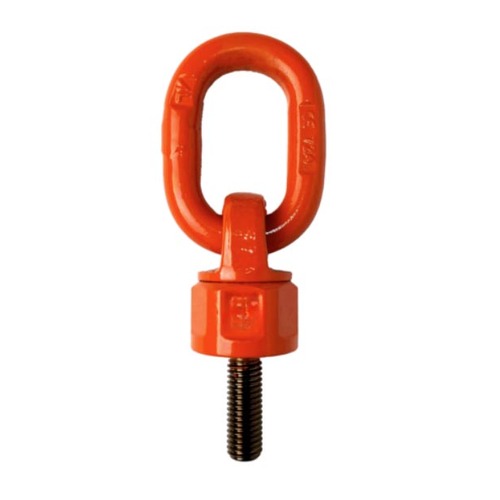

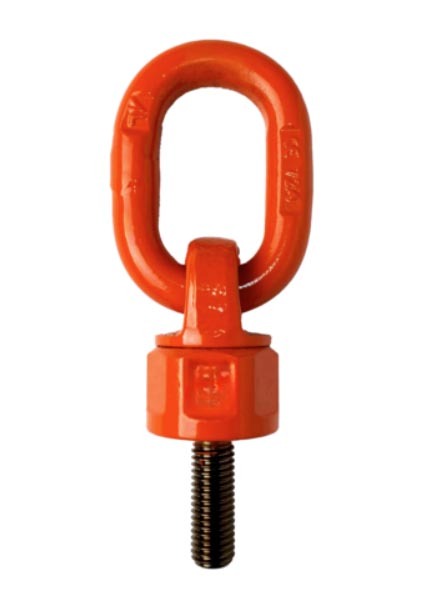

Austlift Oblong Eye Bolt Long Series

Tested in accordance to EN 1667-4 for load ring and AS2318 for the swivel component.
Used as swivelling load ring capable of rotating under load due to ball bearing rings ideally suited for dynamic lifting in a any position.
360° rotation 230° swing for versatile use.
Forged G80 alloy steel, quenched and tempered.
Proof tested at 2.5x load limit.
20,000 cycle fatigue test at 1.5x load limit.
Test certificates are available upon request.

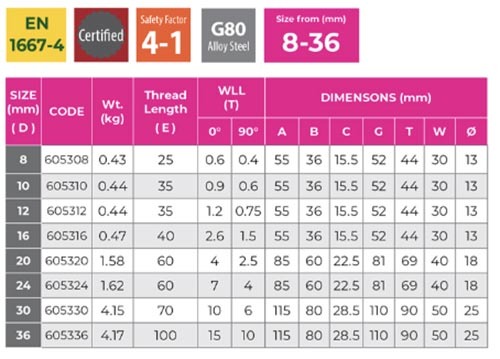

Specifications

AIMS SKU A0207227

Brand Austlift

Model Number 605330

Barcode Number 9345339036483

Size 30 mm

Weight (kgs) 4.15

Thread Length E 70 mm

Type Eye Bolt
