Austlift Load Cell With Read Out & 2 Shackles 20Tonne

Description

***Made To Order. Contact AIMS for assistance.***

***WLL 200Tonne is Special Manual Order. Due to variation in shipping costs, please contact Customer Service for a quote specific to your area or requirement.***

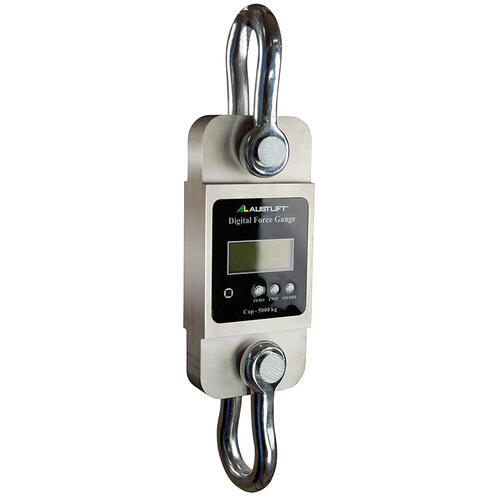

Austlift Load Cell With Read Out & 2 Shackles

Austlift shackle link load cells are used for measuring the accurate weight of an object to be lifted or tensioned. Mainly used for the crane, rigging industry, test laboratories and also research and development facilities.

Robust construction and large digital display with back light feature.
Capacities are available from 1t to 200t with an accuracy of 0.1%.
Have a reading of 200-300 times per second.
Capable of measuring loads in pounds, tonnes and kilogram units.
Battery operated with low battery and overload warning feature.
All load cells come with two shackles and a remote in heavy duty carry case.

Specifications

AIMS SKU A0168397

Brand Austlift

Model Number 160020

Dimension A (mm) 420

Dimension B (mm) 128

Dimension C (mm) 74

Dimension D (mm) 260

Dimension H (mm) 660

WLL (T) 20

Unit Weight (kg) 17.8

Wt. With Shackle (kg) 48.6

Min. Weight (kg) 200

Total Display Counts (n) 2000

Division (kg) 10

Ø (mm) 127

Type Load Cell With Read Out & 2 Shackles
Material Aluminium
