Austlift Large Swivel Eye Bolt M27 x 4T WLL

Description

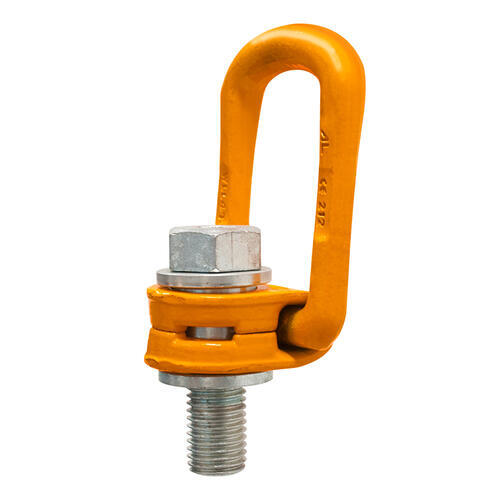

Austlift Large Swivel Eye Bolt (Short Thread)

Large ring bolt accordingly to EN 818-4 for load ring and AS2318 for the swivel component.
Used as a swiveling load ring able to swivel 360° with a pivot of 180°.
Made from G80 alloy steel with Orange painted finish,manufactured with an elongated ring in metric thread sizes.
Marked with work load limit in tonne, nominal size in millimetre, quality mark and supplier identification.
Proof tested to 1.25 x working load limit.
Test certificate available upon request.

Notes

Long thread eye bolts can be cut to suits jobs.
When cutting the bolts a cold cutting method must be used.
Do not use Oxy- Acetylene cutting.
The lengthafter cutting must not be less than 1.5 times that of its diametre.

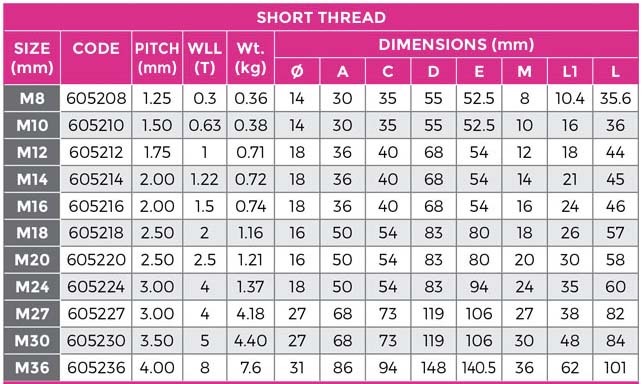

Specifications

AIMS SKU A0168913

Brand Austlift

Model Number 605227

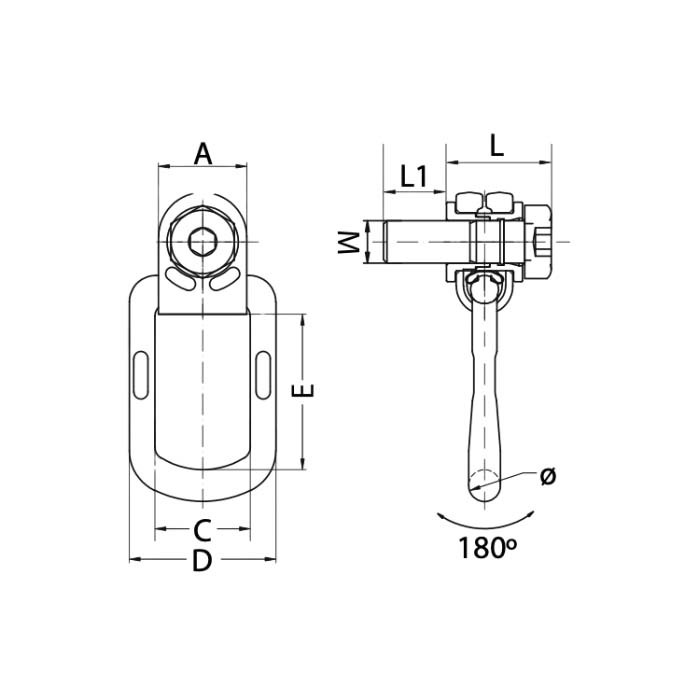

Size (mm) M27

L1 (mm) 38

C (mm) 73

A (mm) 68

E (mm) 106

D (mm) 119

L (mm) 82

M (mm) 27

WLL (T) 4

Ø (mm) 27

Wt. (kg) 4.18

BL (T) 16

Type Swivel Eye Bolt
