Description

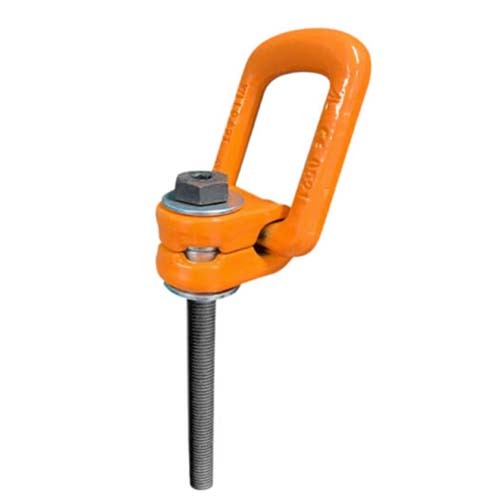

Austlift Large Swivel Eye Bolt With Nut (Long Thread)

Large ring bolt accordingly to EN 818-4 for the load ring and AS2318 for the swivel component.
Used as a swiveling load ring able to swivel 360° with a pivot of 180°.
Made from G80 alloy steel with an Orange painted finish, manufactured with an elongated ring in metric thread sizes.
Marked with workload limit in tonne, nominal size in millimetre, quality mark, and supplier identification.
Proof tested to 1.25 x working load limit.
Test certificate available upon request.

Notes

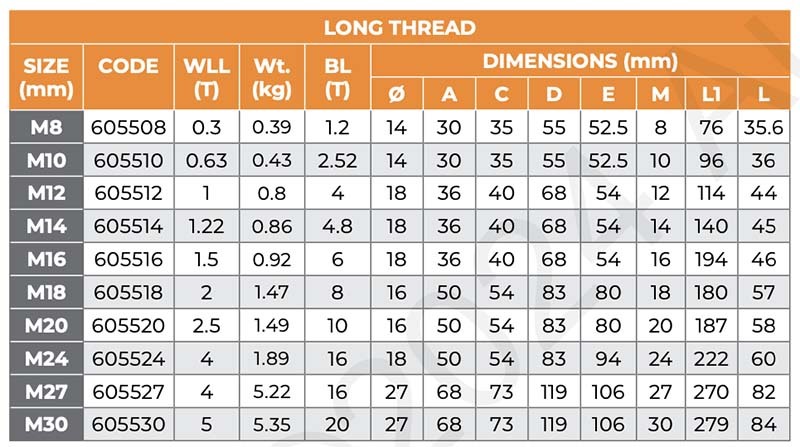

Specifications

AIMS SKU A0168921

Brand Austlift

Model Number 605520

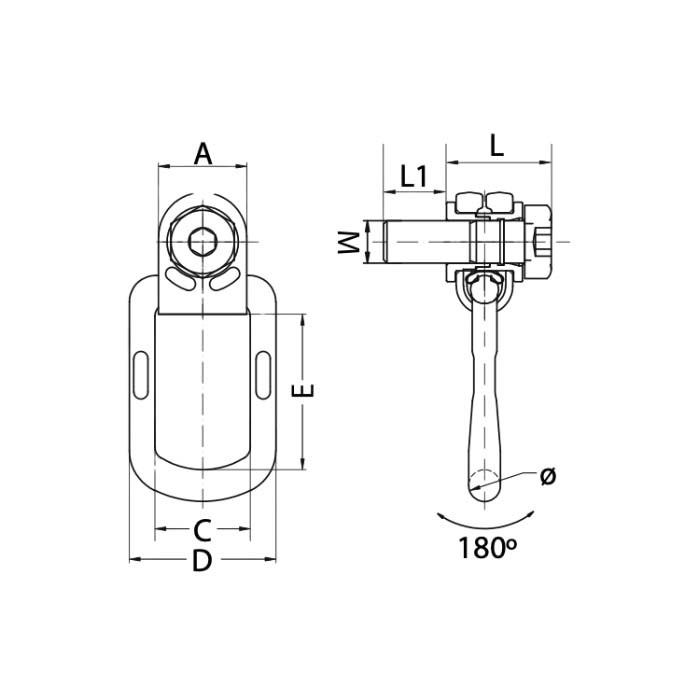

Size (mm) M20

L1 (mm) 187

C (mm) 54

A (mm) 50

E (mm) 80

D (mm) 83

L (mm) 58

M (mm) 20

WLL (T) 2.5

Ø (mm) 16

Wt. (kg) 1.49

BL (T) 10

Austlift Large Swivel Eye Bolt
