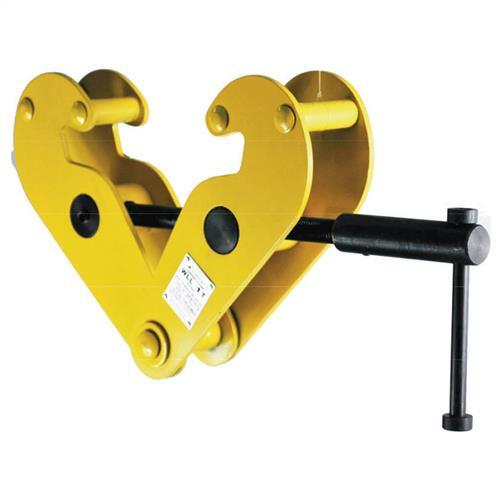

Austlift Girder Clamp

Austlift girder clamps are designed to lift steel girders and narrow steel plates or clamped on the girder to utilize as a lifting point.

  • Can use on material hardness up to 37RC.
  • Individually serial numbered with test certificates and user manual.
  • Can only be used on vertical lift.

Specifications

  • AIMS SKU A0168355
  • Brand Austlift
  • Model Number 132013
  • Weight (kg) 10
  • B Min (mm) 235
  • B Max (mm) 490
  • Dimension C (mm) 103
  • Dimension D (mm) 8
  • Dimension E (mm) 260
  • Dimension G (mm) 45
  • Dimension H (mm) 24
  • WLL (T) 3
  • Beam Size (mm) 80 - 320
  • A Max (mm) 354
  • F Min. (mm) 140
  • F Max (mm) 225
  • Type Girder Clamp
SKU: A0168355

Austlift Girder Clamp Model GC01 3Tonne, 80 - 320mm

Austlift Girder Clamp

$142.34
