Austlift G80 Large Master Link SD Type 20/16mm - 101020

Description

Austlift G80 Large Master Link SD Type

Austlift SD type head-rings are designed to cater for single leg and double leg chain slings or wire rope sling applications.
Marked with single and double chain sizes,batch number, grade, and Austlift branded with manufacture quality mark.
Safety factor 4 to 1 for chain sling, 5 to 1 for wire rope sling.
Batch tested, test certificates available upon request.

Specifications

AIMS SKU A0209127

Brand Austlift

Model Number 101020

Barcode Number 9345339004055

1 Leg / 2 Leg Size (mm) 20 / 1

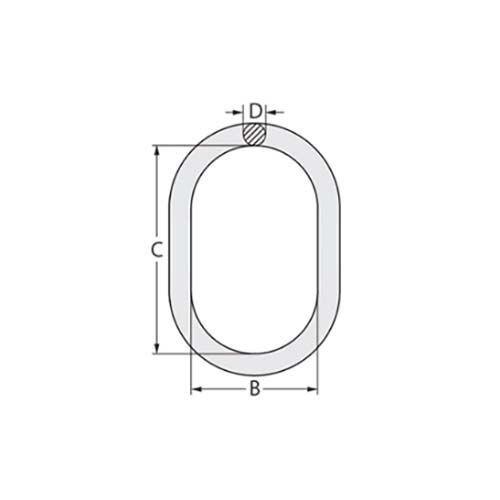

Dimension B (mm) 140

Dimension C (mm) 240

Dimension D (mm) 35

Weight (kgs) 5.66

WLL 13.8 T

Size - 1 Leg (mm) 20

Size - 2 Leg (mm) 1

Type Master Link
Grade G80
