Austlift G100 Alloy Steel Clevis Self Locking Hook 20mm - 170520

Description

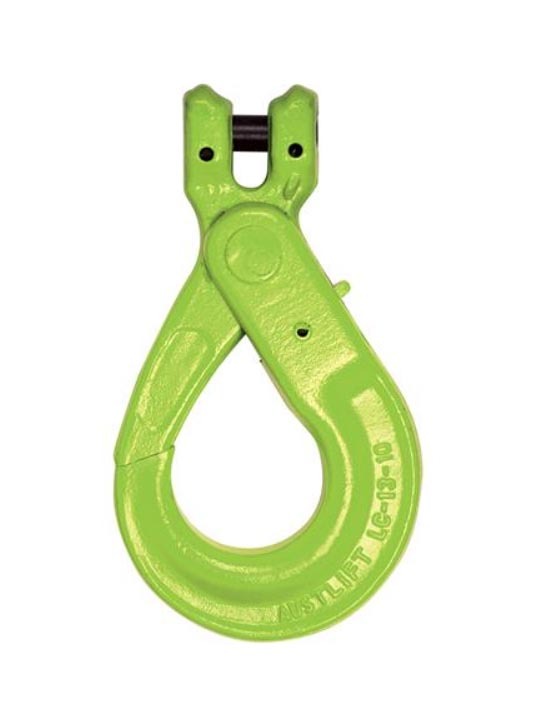

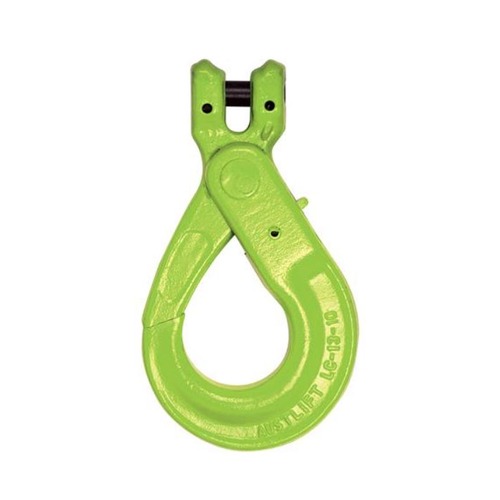

Austlift Clevis Self Locking Hook G100 Alloy Steel

Self Locking Hook (Clevis Type, LC).
Austlift LC type G100 clevis self-locking hook allows the hook to be easily closed with one hand, it will close itself when the load is engaged.
The hook will not open until the trigger at the back is pressed.
Clevis style allows easy connection to the chain.
Marked with chain size, designation, grade, manufacture quality mark, and Austlift branded.
25% higher work load limit than G80.
Batch tested, test certificates available upon request.
Spare trigger kits and load pins are available.
Fatigue tested > 20,000 times.

Specifications

AIMS SKU A0207672

Brand Austlift

Model Number 170520

Barcode Number 9345339008121

Size (mm) 20

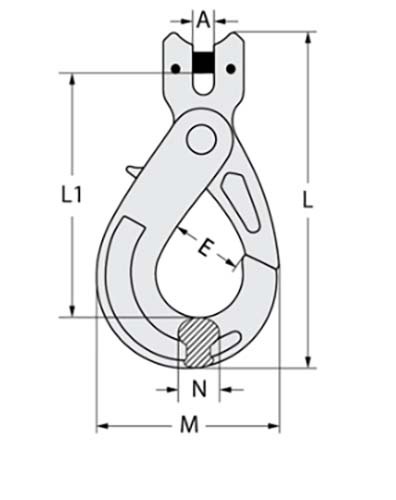

Dimension (mm) A 25

Weight (kgs) 8.6

WLL 16 T

Dimension (mm) E 76.5

Dimension (mm) L 337

Dimension (mm) L1 235

Dimension (mm) M 190

Dimension (mm) N 50

Type Clevis Self Locking Hook

Calculate Shipping

Resources

Austlift G100 Chain & Fittings Catalogue
