Description

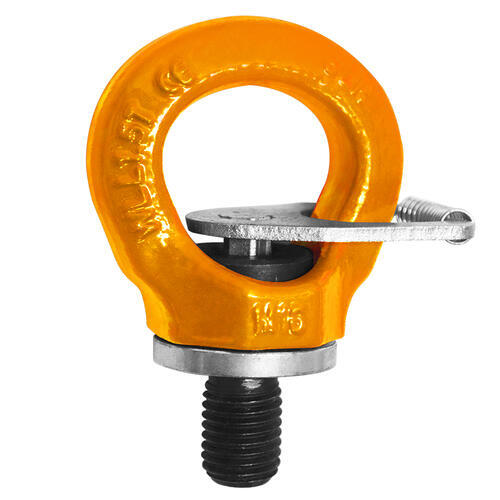

Austlift Eye Bolt Swing

  • Swivel Eye Bolt Points are accordingly to AS2318 for the swivel component.
  • Used as a swiveling load ring able to swivel 360° with a pivot of 90°.
  • Made from G100 alloy steel with Orange painted finish, manufactured with an elongated ring in metric thread sizes 8mm to 20mm.
  • Marked with work load limit in tonne, nominal size in millimetre, quality mark and supplier identification.
  • Designed by forged alloy steel, quenched, and tempered.
  • 360° rotation with 90° pivot function.
  • Rated at 100% at 90° angle.
  • 100% magnaflux crack detection.
  • Test certificate available upon request.

Proof tested in 2 stages:

  1. 1.25 x working load limit with ball bearing included.
  2. Removal of ball bearing that is subject to damages, then 2x working load limit is applied.

Specifications

  • AIMS SKU A0168893
  • Brand Austlift
  • Model Number 605010
  • Size (mm) 10mm
  • Weight (kg) 0.15
  • C (mm) 45.3
  • A (mm) 38
  • F (mm) 8
  • E (mm) 25
  • b (mm) 26
  • D (mm) 14
  • 0° WLL (T) 1
  • 90° WLL (T) 0.4
  • 0° BL (T) 4
  • 90° BL (T) 1.6
  • Type Eye Bolt
SKU: A0168893

Austlift Eye Bolt Swing 10mm x 1T WLL

Austlift Eye Bolt Swing

$15.17
