Specifications

AIMS SKU A0207170
Brand Austlift
Model Number 602210
Barcode Number 9345339033475
Size (mm) M10
Pitch (mm) 1.5

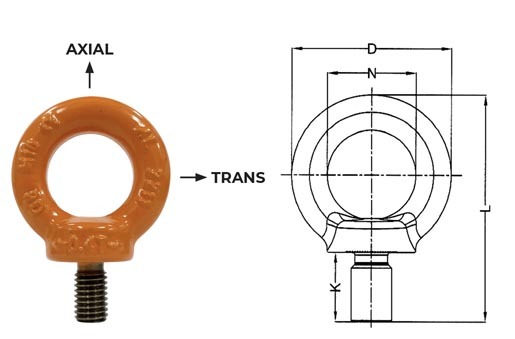

Dimension D (mm) 45
Weight (kgs) 0.11
Dimension L (mm) 62
Dimension K (mm) 17
Dimension N (mm) 25

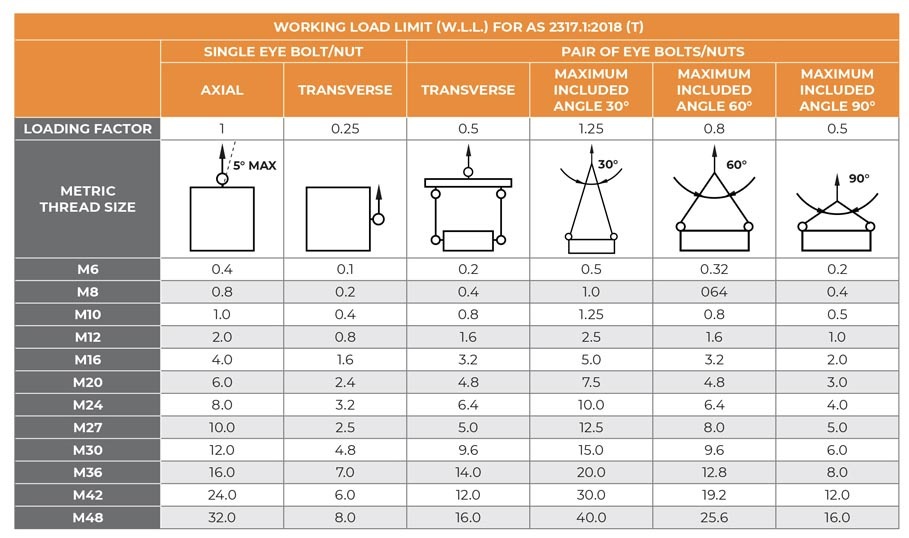

WLL (T) Axial 1
WLL (T) Trans 0.4

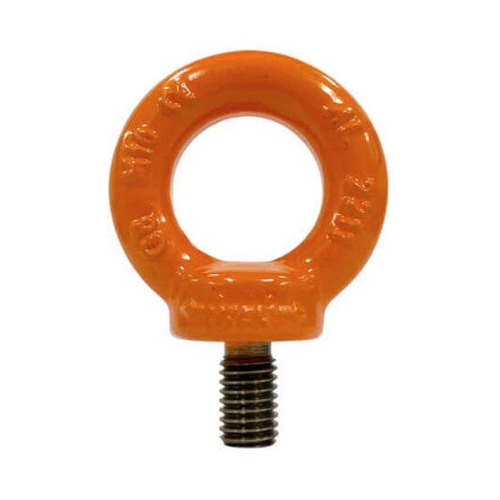

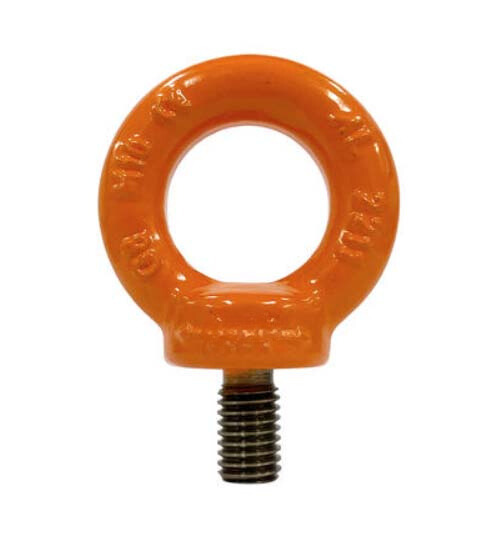

• Type Eye Bolt
