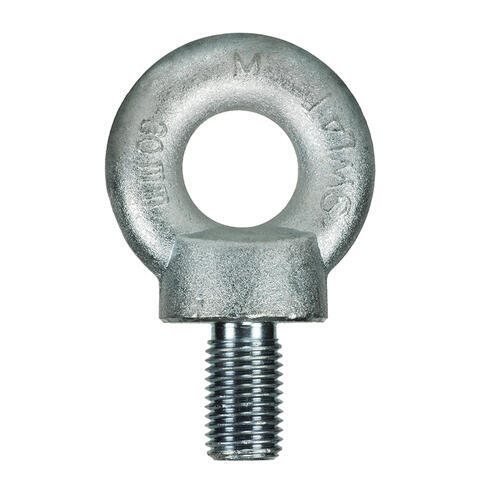

Austlift Eye Bolt BS4278 Zinc Plated (Metric Thread)

  • BS4278 eye bolts are generally used as a removable lifting point where a rated female thread or nut can be utilised also can be used as a termination for chain,wire rope and other assembles where required.
  • Made from carbon steel following steel specifications of BS970 with zinc plated finish, manufactured with a smaller eye than DIN type.
  • Conforms to AS2317, marked with working load limit in tonne, nominal size, quality grade, batch numbered and supplier identification.
  • Proof tested to 2 x working load limit and minimum breaking force of 6 x working load limit.
  • Test certificates are supplied upon request.


  • AIMS SKU A0168874
  • Brand Austlift
  • Model Number 603008
  • Size (mm) M8
  • D1 (mm) 13
  • D2 (mm) 20
  • Pitch (mm) 1.25
  • SWL (T) 0.15
  • H (mm) 31
  • H1 (mm) 16
  • D (mm) 8
  • w (mm) 28
  • Weight (kg) 0.06
  • Type Eye Bolt
  • System of Measurement Metric
  • Finish Zinc Plated
  • Standard BS4278
SKU: A0168874

Austlift Eye Bolt BS4278 Zinc Plated (Metric Thread) M8 x 0.15T SWL

Austlift Eye Bolt BS4278 Zinc Plated (Metric Thread)
