Description

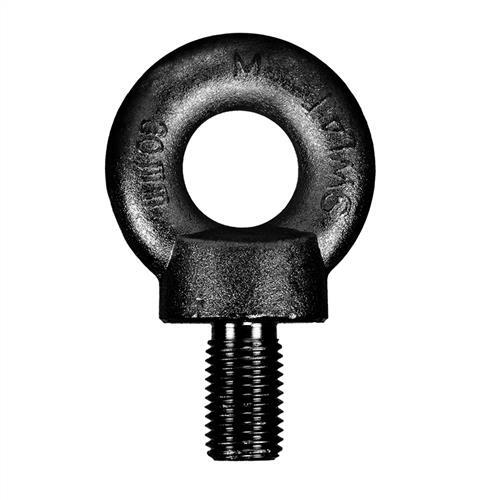

Austlift Eye Bolt BS4278 Black (Metric Thread)

  • BS4278 eye bolts are generally used as a removable lifting point where a rated female thread or nut can be utilised also can be used as a termination for the chain, wire rope, and other assemblies where required.x
  • Conforms to AS2317, marked with working load limit in tonne, nominal size, quality grade, batch numbered, and supplier identification.
  • Proof tested to 2 x working load limit and minimum breaking force of 6 x working load limit.
  • Test certificates are supplied upon request.

Specifications

  • AIMS SKU A0168884
  • Brand Austlift
  • Model Number 603020B
  • Size (mm) M20
  • D1 (mm) 27
  • D2 (mm) 40
  • Pitch (mm) 2.5
  • Weight (kg) 0.44
  • D (mm) 20
  • H (mm) 68
  • w (mm) 64
  • Color Black
  • H1 (mm) 32
  • SWL (T) 1.6
  • Type Eye Bolt
  • System of Measurement Metric
  • Standard BS4278
SKU: A0168884

Austlift Eye Bolt BS4278 Black (Metric Thread) M20 x 1.6T SWL

Austlift Eye Bolt BS4278 Black (Metric Thread)

$10.70
