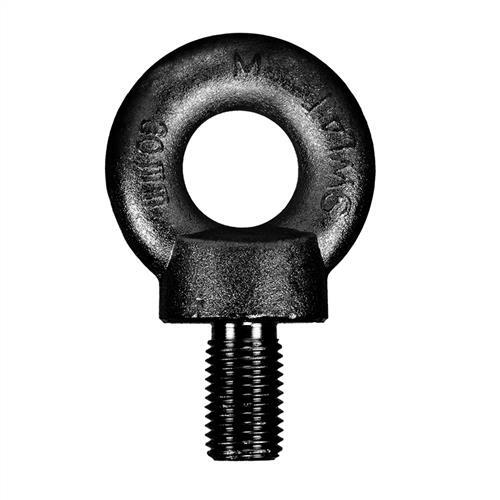

Austlift Eye Bolt BS4278 Black (Metric Thread)

  • BS4278 eye bolts are generally used as a removable lifting point where a rated female thread or nut can be utilised also can be used as a termination for the chain, wire rope, and other assemblies where required.x
  • Conforms to AS2317, marked with working load limit in tonne, nominal size, quality grade, batch numbered, and supplier identification.
  • Proof tested to 2 x working load limit and minimum breaking force of 6 x working load limit.
  • Test certificates are supplied upon request.

Specifications

  • AIMS SKU A0168881
  • Brand Austlift
  • Model Number 603010B
  • Size (mm) M10
  • D1 (mm) 14
  • D2 (mm) 22
  • Pitch (mm) 1.5
  • H1 (mm) 18
  • H (mm) 35.5
  • Color Black
  • D (mm) 10
  • SWL (T) 0.25
  • w (mm) 29
  • Weight (kg) 0.07
  • Type Eye Bolt
  • System of Measurement Metric
  • Standard BS4278
SKU: A0168881

Austlift Eye Bolt BS4278 Black (Metric Thread) M10 x 0.25T SWL
