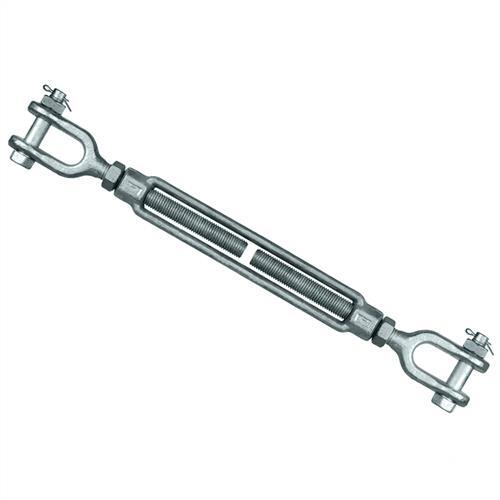

Austlift 45mm (1-3/4") x 457mm Turnbuckle Jaw/Jaw Grade P - 12.7T WLL

Description

Austlift Turnbuckle Jaw/Jaw Grade P

Generally used for straight or in-line tensioning in conjunction with wire rope and or chain assemblies when heavy-duty straining and lifting applications are required.
Manufactured from Grade P high tensile material quenched and tempered hot-dipped galvanised finish suitable for outdoor use available in imperial sizing and jaw end fittings with locknuts.
Meets the design requirements of ASTM F1145:2017.
Proof tested to 2 x WLL and minimum brake force is 5 x WLL.
Suitable for industrial lifting purposes.
The actual sizes of thread are Whitworth.

Specifications

AIMS SKU A0168715

Brand Austlift

Model Number 406045

Size 45 mm

Weight (kg) 24.5

A (mm) 44.5

F (mm) 899

E (mm) 1356

b (mm) 60

g (mm) 86

L (mm) 41

Size (in) 1-3/4"

N (mm) 1046

M (mm) 1503

Working Load Limits Wll (t) 12.7

Body Length - C 457mm

Type Turnbuckle Jaw/Jaw
Material High Tensile
Finish Hot Dipped Galvanised
Grade Grade P
