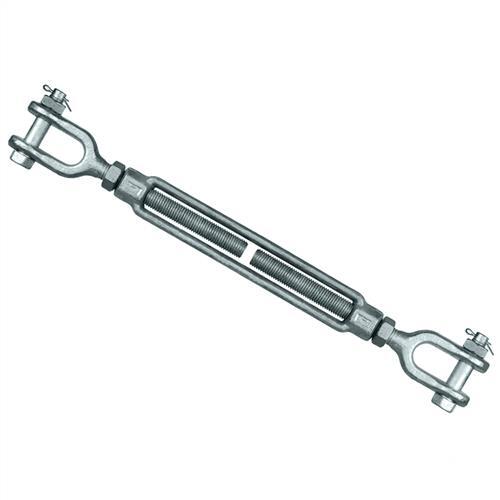

Austlift 25mm (1") x 305mm Turnbuckle Jaw/Jaw Grade P - 4.54T WLL

Description

Austlift Turnbuckle Jaw/Jaw Grade P

Generally used for straight or in-line tensioning in conjunction with wire rope and or chain assemblies when heavy-duty straining and lifting applications are required.
Manufactured from Grade P high tensile material quenched and tempered hot-dipped galvanised finish suitable for outdoor use available in imperial sizing and jaw end fittings with locknuts.
Meets the design requirements of ASTM F1145:2017.
Proof tested to 2 x WLL and minimum brake force is 5 x WLL.
Suitable for industrial lifting purposes.
The actual sizes of thread are Whitworth.

Specifications

AIMS SKU A0168712

Brand Austlift

Model Number 406025

Size 25 mm

Weight (kg) 5.53

A (mm) 25.4

F (mm) 577

E (mm) 933

b (mm) 30

g (mm) 52.5

L (mm) 22.5

Size (in) 1"

N (mm) 662

M (mm) 1018

Working Load Limits Wll (t) 4.54

Body Length - C 305mm

Type Turnbuckle Jaw/Jaw
Material High Tensile
Finish Hot Dipped Galvanised
Grade Grade P
