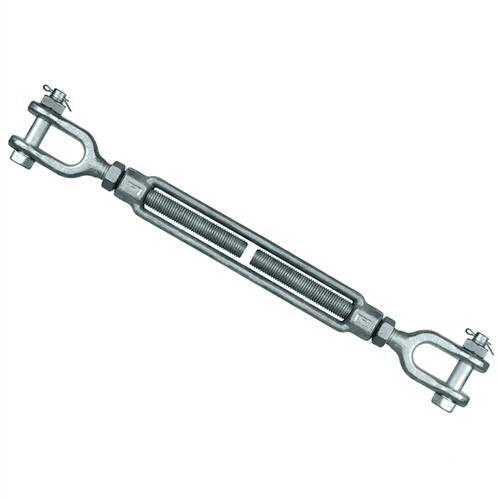

Austlift 22mm (7/8") x 375mm Turnbuckle Jaw/Jaw Grade P - 3.27T WLL

Description

Austlift Turnbuckle Jaw/Jaw Grade P

Generally used for straight or in-line tensioning in conjunction with wire rope and or chain assemblies when heavy-duty straining and lifting applications are required.
Manufactured from Grade P high tensile material quenched and tempered hot-dipped galvanised finish suitable for outdoor use available in imperial sizing and jaw end fittings with locknuts.
Meets the design requirements of ASTM F1145:2017.
Proof tested to 2 x WLL and minimum brake force is 5 x WLL.
Suitable for industrial lifting purposes.
The actual sizes of thread are Whitworth.

Specifications

AIMS SKU A0168711

Brand Austlift

Model Number 406022

Size 22 mm

Weight (kg) 3.71

A (mm) 22.4

F (mm) 543

E (mm) 892

b (mm) 28.7

g (mm) 44.5

L (mm) 19

Size (in) 7/8"

N (mm) 618

M (mm) 967

Working Load Limits Wll (t) 3.27

Body Length - C 375mm

Type Turnbuckle Jaw/Jaw
Material High Tensile
Finish Hot Dipped Galvanised
Grade Grade P
