Austlift 20mm (3/4") x 305mm Turnbuckle Jaw/Jaw Grade P - 2.36T WLL

Description

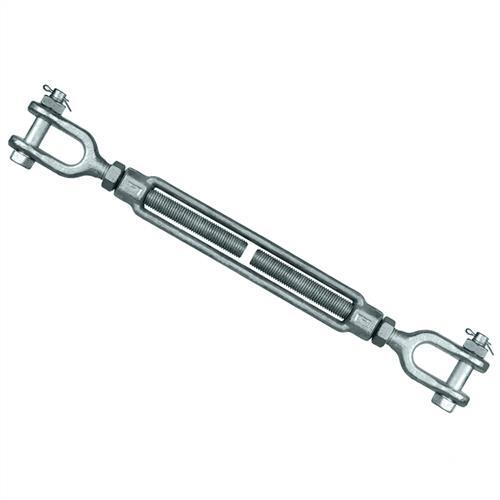

Austlift Turnbuckle Jaw/Jaw Grade P

Generally used for straight or in-line tensioning in conjunction with wire rope and or chain assemblies when heavy-duty straining and lifting applications are required.
Manufactured from Grade P high tensile material quenched and tempered hot-dipped galvanised finish suitable for outdoor use available in imperial sizing and jaw end fittings with locknuts.
Meets the design requirements of ASTM F1145:2017.
Proof tested to 2 x WLL and minimum brake force is 5 x WLL.
Suitable for industrial lifting purposes.
The actual sizes of thread are Whitworth.

Specifications

AIMS SKU A0168710

Brand Austlift

Model Number 406020

Size 20 mm

Weight (kg) 2.98

A (mm) 19.1

F (mm) 508

E (mm) 851

b (mm) 23.4

g (mm) 38.1

L (mm) 16

Size (in) 3/4"

N (mm) 574

M (mm) 917

Working Load Limits Wll (t) 2.36

Body Length - C 305mm

Type Turnbuckle Jaw/Jaw
Material High Tensile
Finish Hot Dipped Galvanised
Grade Grade P
