Specifications

AIMS SKU A0158656
Brand Agri-Power
Model Number 80H-1/AGRI-POWER
Chain Number 80H
Average Tensile Strength (kN) 71.4
Chain Pitch 1 in
Chain Length 10 ft

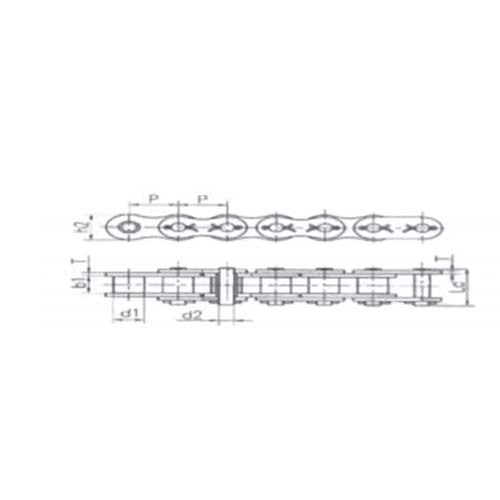

Pitch P (mm) 25.4
Roller Diameter D1 Max (mm) 15.88
Width Between Inner Plates b1 min (mm) 15.75
Pin Diameter d2 max (mm) 7.92
Pin Length L Max (mm) 39.4
Inner Plate Depth h2 max (mm) 24
Plate Thickness T max (mm) 4
Ultimate Tensile Strength (kN) 56.7
Ultimate Tensile Strength (lb) 12886
Weight Per Meter (kg/m) 3.1

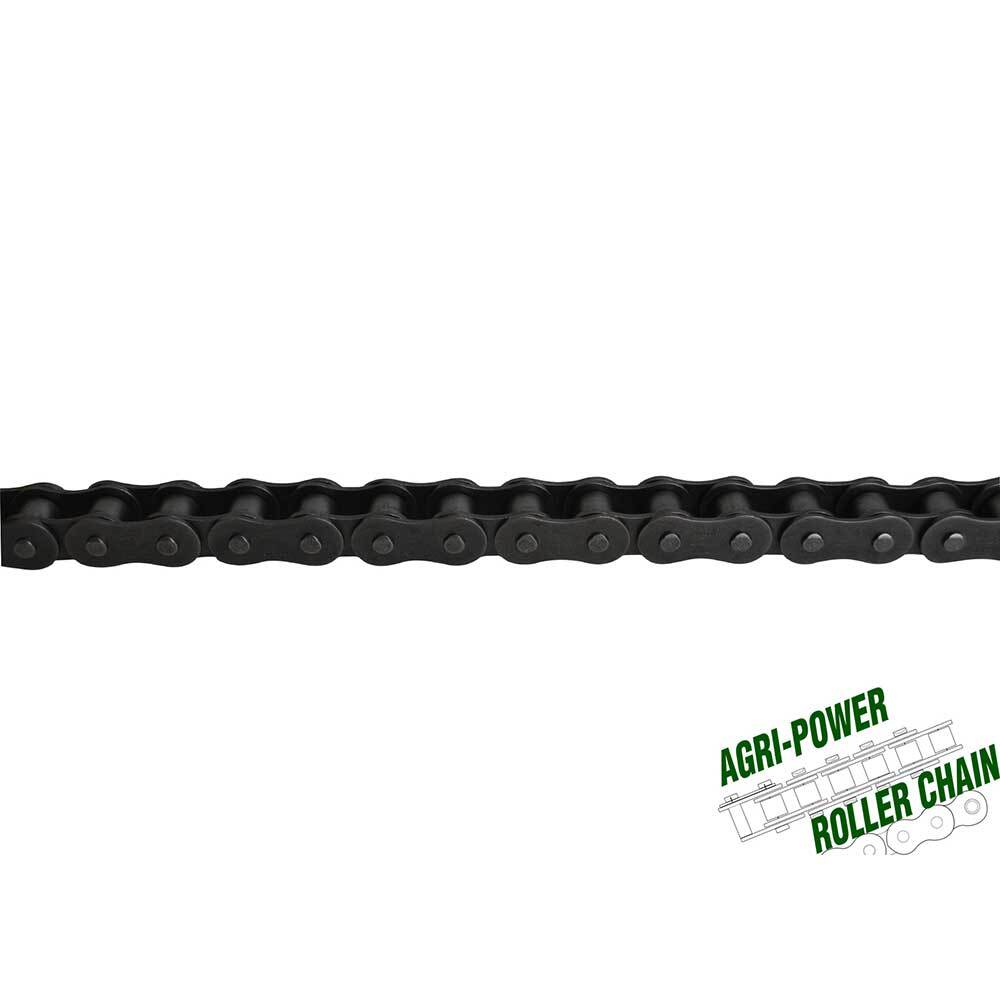

• Type Roller Chain
• System of Measurement American (ASA)
• Strand Simplex
