Description

AAP Reducing Tee Socket Weld

(High-Pressure Fittings)

  • Rating: Socketweld End – 3000lbs
  • Standards: ANSI B16.11 (2009) - Forged Steel Fittings, Socket - Welding and Threaded
  • Marking:
    • Carbon and Alloy Steel – Market by Stamping
    • 3/8" and under: Brand only
    • 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size

Specifications

  • AIMS SKU A0079728
  • Brand AAP
  • Model Number PT2515S

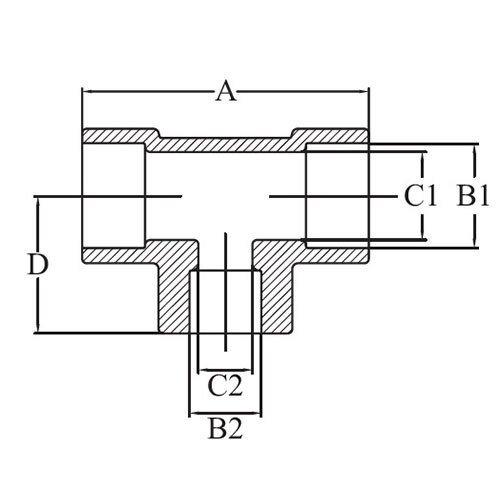

  • B2 21.8
  • D 31.5
  • Pipe Size (mm) 25 x 15
  • B 33.9
  • C2 15
  • Socket Bore Diameter (B2) 22
  • C 25.9
  • Pipe Size (inch) 1 x 1/2
  • Bore Diameter Of Fittings ( C ) 16.6
  • Socket Bore Diameter (B) 34.3
  • Approx. Kg/pc 0.75
  • Length (A) 63
  • Type Socket Weld Reducing Tee
  • Pipe Fitting Connection Socket Weld
SKU: A0079728

AAP 25 x 15mm High Pressure Reducing Tee Socket Weld PT2515S

AAP - Socket Weld - Reducing Tee

$20.22
RRP $37.74
SAVE $17.52 (46%)
