Description

AAAP NBR Lugged Butterfly Valve Table-D

  •  Resilient seat Butterfly Valves are used in a wide flange of industries including HVAC, Gas, Petrochemical, Pulp & Paper, Water & Wastewater Treatment, Brewing, Food processing, mining, Textile, and General Industry.
  • They are compact and give bubble tight shut off as well as having good regulating capabilities.

Lugged Butterfly Style

  • Like the wafer style, the lugged body is compact but has a series of lugs cast into the body which are tapped with a metric thread for the fixing of a flange on one side at a time.

  • The benefit of this being the valve can be mounted at the end of a pipeline without the need for a flange on the downstream (discharge) side of the valve.

  • *AAP 50mm to 300mm Lugged Butterfly Style EPDM version is Australian Standard Watermark (Certificate No: WMKA25460) approved and using Akzo Nobel Paint




Speci?cations

Cold Working Pressure (50-300mm)

1600kPa

Cold Working Pressure (350-600mm)

1000kPa

Top Flange

ISO 5211




Materials List

PART

MATERIAL

Body

Ductile Iron

Handle

Ductile Iron

Stem

SS416

Hub Shaft

CF8M

Bushing

P.T.F.E.

O-Ring

NBR

Specifications

  • AIMS SKU A0081199
  • Brand AAP
  • Model Number VWLG94D
  • Pipe Size (inch) 4
  • Pipe Size (mm) 100
  • Approx. Kg/pc 8.9
  • F 18.1
  • D 178
  • E 70
  • K 14
  • Valve Length 52
  • HI 114
  • H2 200
  • H3 31.8
  • 4-d1 10
  • N-d2 4-M16
  • Type Lugged Butterfly Valve
  • Body Ductile Iron
  • DISC SS316
  • Seat Material NBR
SKU: A0081199

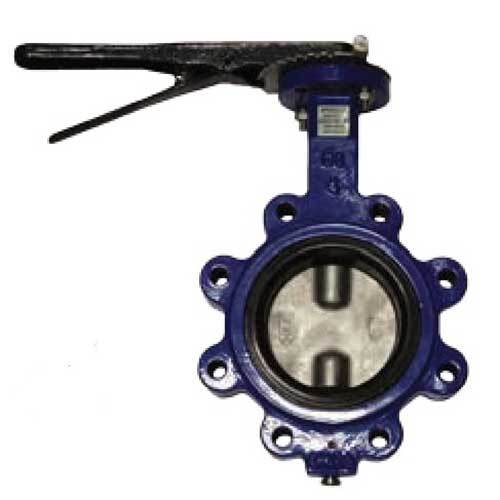

AAP 4" NBR Lugged Butterfly Valve Table-D VWLG94D

AAP Lugged Butterfly Valve

$237.42
RRP $443.20
SAVE $205.78 (46%)
