Description

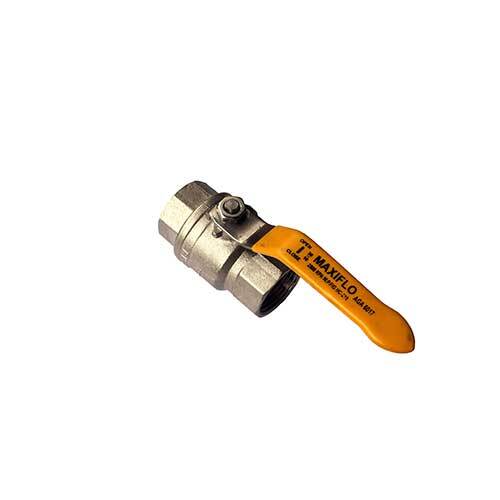

AAP Gas Ball Valve Stainless Steel Lever

Applications:

  • For low to medium gas applications. Can also be used for certain chemicals and oils



Speci?cations
Thread AS1722.1
Max Working Temperature 60°C
Cold Working Pressure 2500kPa




MATERIAL LISTS

PART

MATERIAL

Body

Brass (Nickel Plated)

Seat Retainer

Brass (Nickel Plated)

Seat

P.T.F.E.

Ball

Brass (Chromium plated)

Stem

Brass

Gland

Brass

Packing

Viton (Double O-Ring)

Lever

Stainless Steel (Plastic Coated)

Lever Retaining Nut

Brass (Nickel Plated)
T-Handle (Optional) DR Brass



About Ball Valves:

  • A ball valve is a valve with a spherical ball with an or?ce straight through mounted between te?on seats in either a screwed or ?anged body in various materials.
  • When the ori?ce is in line with both ends of the valve ?ow will occur.
  • When the valve is closed the ori?ce is perpendicular to the ends of the valve.
  • The lever/handle will be in line with the ori?ce position, an indication of the valve position.

Specifications

  • AIMS SKU A0080343
  • Brand AAP
  • Model Number VGAS08
  • Valve Handle Length (W) 85
  • Thread Length (A) 12
  • Pipe Size (inch) 1/4
  • Height of handle from Valve (H) 35
  • Approx. Kg/pc 0.16
  • Valve Length (l) 49.5
  • Pipe Size (mm) 8
  • Type Gas Brass Ball Valve
  • Certification/Approval AGA
  • Lever Finish Stainless Steel
  • Fitting Material Finish Brass
SKU: A0080343 On Sale

AAP 8mm, 1/4" Gas Brass Ball Valve Stainless Steel Lever AGA VGAS08

AAP Gas Ball Valve

$9.75
$11.47
