Description

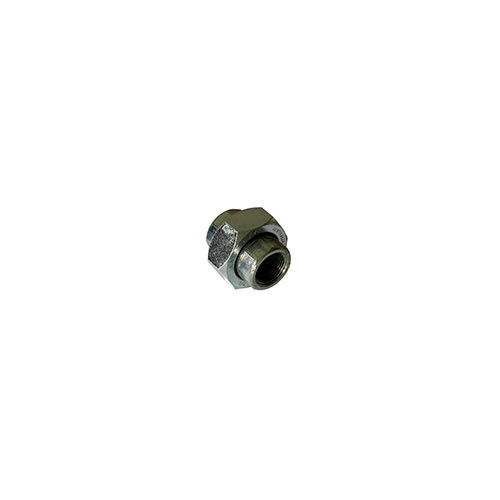

AAP Galvanised Union Steel - F/F - Steel/Steel

  • This is a general-purpose combination recommended where vibration is present.
  • The seats are integral and therefore are the most economically priced.
  • This union will suit almost any application.
  • Zinc coating improves the corrosion resistance of the joints to a marked degree where corrosion is present.

About Zinc-Coated Unions

  • These unions are electro-zinc plated and are available in Steel-Steel, Steel-Bronze, and Bronze-Bronze seats with Female-Female and Male-Female end connections.
  • This process gives a complete coating both externally and internally which protects the pipe union at the thread and vital seating areas.
  • They are particularly suitable where there is condensation, such as in air and gas lines.
  • The zinc coating also gives an outside protective coating against rust when exposed to the atmosphere. (The Steel-Steel zinc-coated union is an ideal union suitable for most applications where vibration and moisture are present, such as compressed airlines and railway braking systems)

Specifications

  • AIMS SKU A0076236
  • Brand AAP
  • Model Number SU08SSG

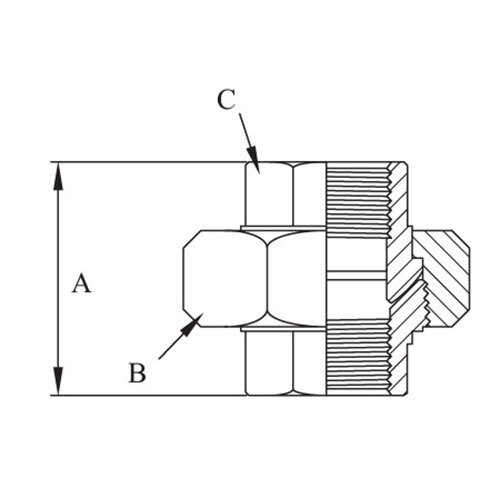

  • Length (mm) 42
  • Across Flats (Hex) mm 21
  • Thread & Pipe Size (mm) 8
  • Thread & Pipe Size (inch) 1/4"
  • Type Union Steel
  • Finish/color Galvanised
  • Pipe Fitting Connection Female -Female
  • Seating Steel/Steel
SKU: A0076236 On Sale

AAP 1/4" (8mm) x 42mm Galvanised Union Steel F/F Steel/Steel SU08SSG

AAP - Union - Galvanised Steel

$30.32
$35.67
