Description

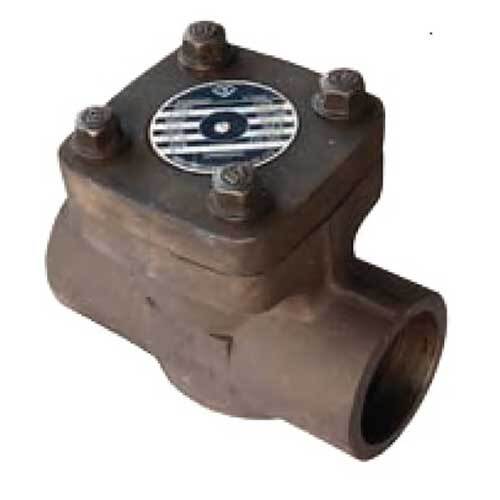

AAP Forged Steel Piston Check Valve Socketweld

Application:

  • Steam Oil and Petro Chemical Industry

Specifications:

  • Design - ANSI B16.34
  • Socket weld - ANSI B16.11
  • Cold Working Pressure - 13800kPa
  • Max Working Temperature - 427°C

Material List:

  • Body - ASTM A105
  • Bonnet - ASTM A105
  • Gasket - Graphite
  • Spring - 316 Stainless Steel
  • Disc - SS410 (2Cr13)
  • Seat - H/F Stellite

Specifications

  • AIMS SKU A0081684
  • Brand AAP
  • Model Number VCP800SW15
  • Height of handle from Valve (H) 90
  • Pipe Size (inch) 1/2
  • Valve Length (l) 60
  • Approx Kg/pc 1.6
  • Pipe Size (mm) 15
  • Type Piston Check Valve
  • Fitting Material Finish Forged Steel
SKU: A0081684 On Sale

AAP 15mm, 1/2" Forged Steel Piston Check Valve Socketweld VCP800SW15

AAP Check Valve Forged Steel

$58.62
$68.96
