Description

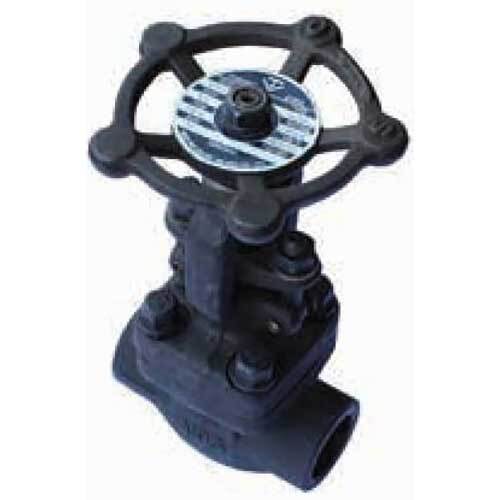

AAP Forged Steel Globe Valves Socketweld Class 800

Applications:

  • High-pressure steam, water, oil, and gas

Specification:

  • Design - API 602
  • Socket Weld - ANSI B16.11
  • Testing - API 598
  • Cold Working Pressure - 13800kPa
  • Max Working Temperature - 427°C

Material List

  • Body - ASTM A 105
  • Seat Ring - Stainless Steel
  • Disc - Stainless Steel
  • Spindle - Stainless Steel
  • Gasket - Stainless Steel
  • Bonnet - ASTM A 105
  • Bonnet bolt - ASTM A 193 Gr. B7
  • Gland packing - Graphoil
  • Gland - Stainless Steel
  • Gland plate - Carbon Steel
  • Yoke nut - NI - Resists
  • Hand Wheel - Malleable Iron / Cast Iron



About Globe Valves:

  • A globe valve is a type of valve used for regulating flow in a pipeline, consisting of a movable disk-type element and a stationary ring seat in a generally spherical body.
  • Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle.
  • This has an opening that forms a seat onto which a movable plug can be screwed in to close the valve.
  • The plug is also called a disc or disk.
  • In globe valves, the plug is connected to a stem which is operated by screw action in manual valves.
  • Globe valves are typically used for applications requiring throttling and frequent operation.

Specifications

  • AIMS SKU A0081672
  • Brand AAP
  • Model Number VGL800SW15
  • Pipe Size (inch) 1/2
  • Valve Handle Length (W) 100
  • Approx. Kg/pc 1.9
  • Height of handle from Valve (H) 145
  • Pipe Size (mm) 15
  • Valve Length (l) 80
SKU: A0081672

AAP 1/2" Forged Steel Globe Valves Socketweld Class 800 VGL800SW15

AAP Globe Valve Forged Steel

$83.50
