Description

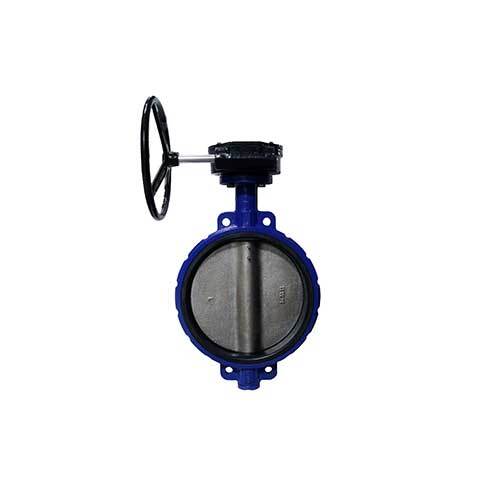

AAP EPDM Wafer Butterfly Valve w/ SS Disc a& G/O

  •  Resilient seat Butterfly Valves are used in a wide flange of industries including HVAC, Gas, Petrochemical, Pulp & Paper, Water & Wastewater Treatment, Brewing, Food processing, mining, Textile, and General Industry.
  • They are compact and give bubble tight shut off as well as having good regulating capabilities.

 Wafer Butterfly Style

  • The body design is such that it can be used with most international Flangesincluding AS2129, BS10, ANSI, DIN & JIS Standards in sizes 50mm to 300mm.
  • The wafer style is designed for inline service and relies on a flange either side of the valve to secure in the pipeline.
  • *AAP 50mm to 300mm Wafer Butterfly Style EPDM version is Australian Standard Watermark (Certificate No: WMKA25460) approved and using Akzo Nobel Paint




Materials (SS Butterfly)

PART

MATERIAL

Body

CF8M

Handle

SS304

Stem

SS416

Hub Shaft

SS416

Bushing

PTFE

O-Ring

EPDM

Specifications

  • AIMS SKU A0081145
  • Brand AAP
  • Model Number VWEX35SS
  • Ød 28
  • H2 267
  • T 8
  • Approx. Kg/pc 45
  • z 31.6
  • N-d2 12-28.4
  • R 8
  • HI 368
  • E 102
  • Pipe Size (mm) 350
  • 4-d1 12
  • H3 45
  • Valve Length 78
  • D 470
  • Pipe Size (inch) 14
  • Type Wafer Butterfly Valve
  • Seat Material EPDM
  • DISC SS316
  • Body Cast Iron
SKU: A0081145 On Sale

AAP 14" EPDM Wafer Butterfly Valve w/ SS Disc a& G/O VWEX35SS

AAP Wafer Butterfly Valve

$1,524.93
$1,794.03
