Description

AAP Rubber Bellows (Combination of Table E x BS4504 PN16)

  • Standard:
    • ASTM Designation D1418-64 - EPDM
    • BS4504 X AS2129 ‘E’
  • Temperature: -30°C + 120°C
  • Composition: Ethylene-propylene- dieneterpolymer
  • Generally Resistant: Animal and vegetable oils, ozone, strong and oxidizing chemicals
  • Generally affected or attacked: Mineral oils and solvents, aromatic hydrocarbons
  • Applications: Air, Compressed Air, Water, Sea Water, Hot Water, Weak Acid
  • Bursting Pressure: 6000kPa
  • Vacuity: 86.7 kPa

About Rubber Bellows:

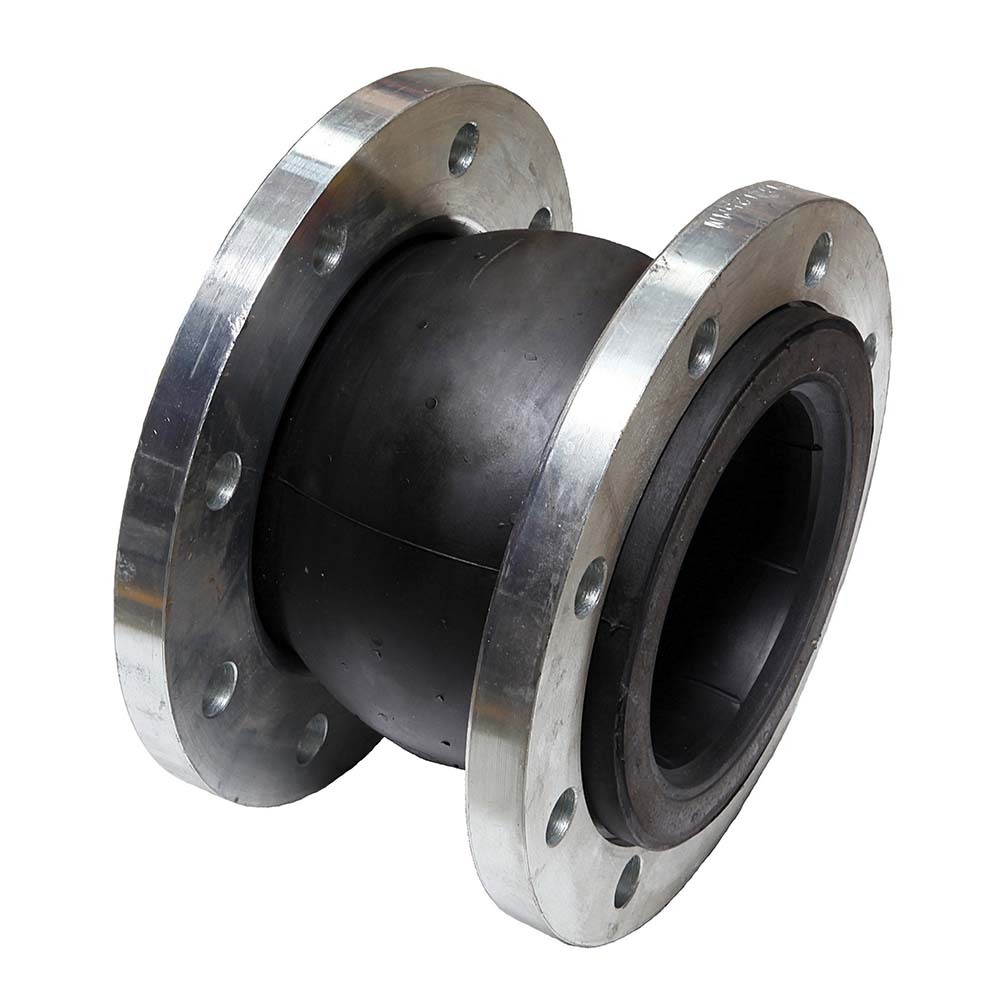

  • A Rubber bellow is a flexible jointmade from heat-resisting synthetic elastomers and molded in a spherical shape with metal floating flanges.
  • Rubber Bellows (Flexible Rubber Joints) are installed in piping systems to absorb movements in three directions:
    • Axial - the movement of elongation and compression along the centre line
    • Lateral - offset movement from the centre line
    • Angular - offset bending about the centre line





Specifications

  • AIMS SKU A0081312
  • Brand AAP
  • Model Number RBEPN1632
  • Transverse Deflection 22
  • Axial Compression 9
  • Pipe Size (inch) 1-1/4
  • Angular Deflection 15°

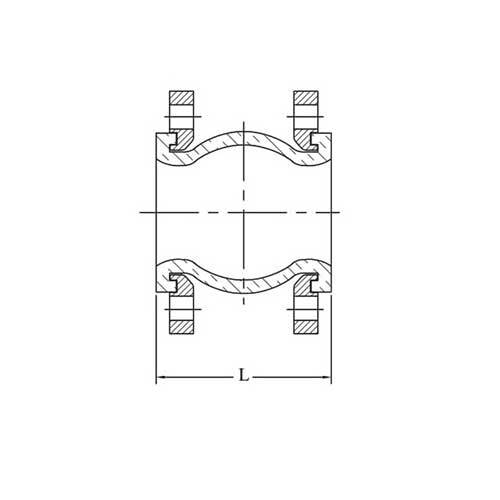

  • Length 95
  • Axial Elongation 6
  • Pipe Size (mm) 32
  • Type Rubber Bellow
  • Material Properties EPDM
SKU: A0081312 On Sale

AAP 1-1/4" EPDM Rubber Bellow Flexible Joint Table-E PN16 RBEPN1632

AAP EPDM Rubber Bellow

$56.87
$66.90
