Description

Stainless Steel Butt Weld

AAP supplies Stainless Steel butt-weld ?ttings made from welded stainless steel pipe which is manufactured from 2B or HRAP stainless steel strip, which is formed to shape and longitudinally welded to complete the pipe.

Stainless Steel Butt Weld Fittings are made from the ?nest quality stainless steel designed to be dimensionally precise.

The advantages of these ?ttings are its high tensile strength, robust nature, and rust-free properties.

Stainless steel butt-weld ?ttings are most commonly used in re?nery complexes, chemical production, and petrochemical engineering.

Specifications

AIMS SKU A0080818

Brand AAP

Model Number SWCR403164025

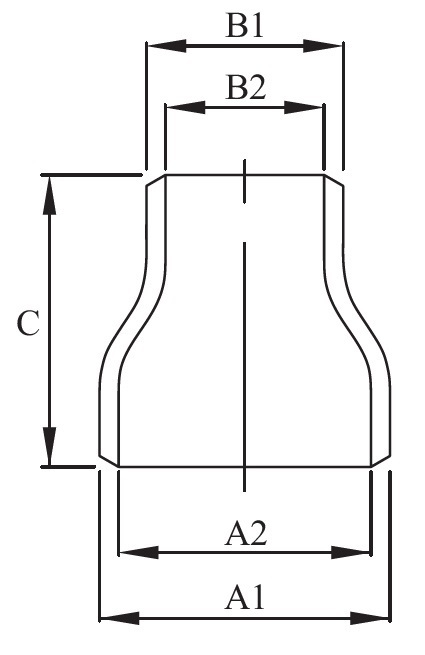

Inner Diameter (B2) mm 26.6

Outer Diameter (A1) mm 48.3

Pipe Size (inch) 1-1/2 x 1

Inner Diameter (A2) mm 40.9

Approx. Kg/pc 0.3

Length ( C ) 64

Outer Diameter (B1) mm 33.4

Pipe Size (mm) 40 x 25
