Description

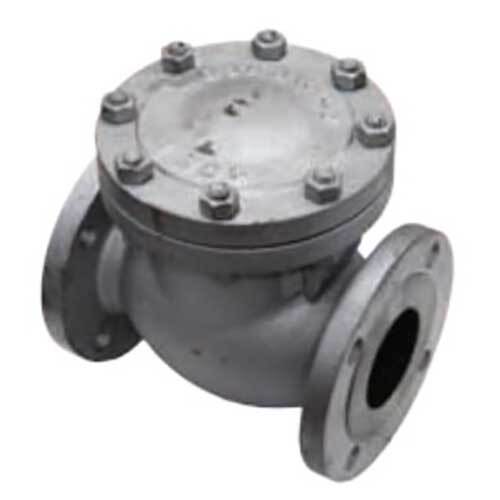

AAP Cast Steel Flanged Check Valve ANSI-150

Application:

  • Steam Oil and Petro Chemical Industry

Specifications:

  • Design - ANSI B16.34
  • Flange - ANSI B16.5
  • Cold Working Pressure - 1960kPa
  • Max Working Temperature - 300°C

Material List:

  • Body - WCB (ASTM A216)
  • Bonnet - WCB (ASTM A216)
  • Disc - 410 (2Cr13)
  • Seat - H/F Stellite
  • Gasket - Graphite

Specifications

  • AIMS SKU A0081118
  • Brand AAP
  • Model Number VSC30050
  • Approx Kg/pc 25

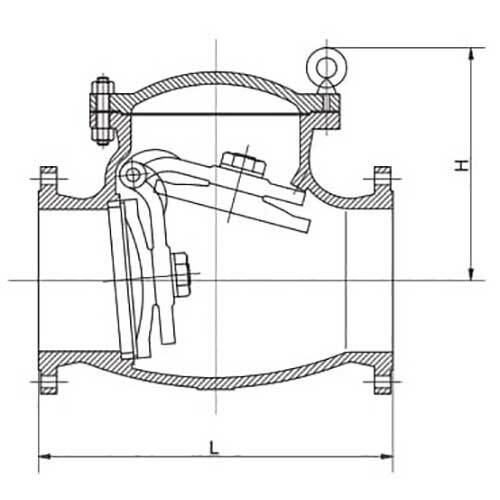

  • Height of handle from Valve (H) 160
  • Pipe Size (inch) 2
  • Hole Diameter 8
  • Valve Length (l) 266.7
  • Number of holes 20
  • Pipe Size (mm) 50
  • Type Flanged Check Valve
  • Fitting Material Finish Cast Steel
SKU: A0081118

AAP 50mm, 2" Cast Steel Flanged Check Valve ANSI-300 VSC30050

AAP Check Valve flanged

$480.07
RRP $896.13
SAVE $416.06 (46%)
