Description

AAP Aluminium Camlock Coupler Type-B x BSP Male

Specifications and Typical of Applications in Aluminum Diecast

  • Conforming to ASTM B 26B 26M.
  • General Use / AG / Industrial.
  • Manufactured using the die-casting method.
  • Most common/economical of the aluminum flange.

About Camlock

  • Camlocks are also known as Cam and Groove Fittings.
  • The AAP Industries flange of Camlock is manufactured to interchange with all products produced to Mil-Spec A-A 59326.
  • Size 1/2" (15mm) and 8" (200mm) fittings are not covered by Mil-Spec A-A 59326, these sizes are to manufactures specification only.
  • Used were quick, convenient connection and disconnection of piping and hose are required.
  • Industries - irrigation, Pumping, Hose Distributors, Bulk Tankers, Water Carriers, General Industry.
  • Medium - Water, Oil, powders, some Hydrocarbons, and Chemicals (check compatibility charts).
  • Threads - The threads are cut according to ISO 228.
  • Maximum Temperature - NBR (Buna) Gasket 100 degrees Celcius.
  • Spare Parts - AAP has available a flange of spare parts to suit the camlocks, such as Brass Handles (code CBH…), Handle Pins (code CP….), and NBR Gaskets (code CGN…).

Specifications

  • AIMS SKU A0077462
  • Brand AAP
  • Model Number CAL15B

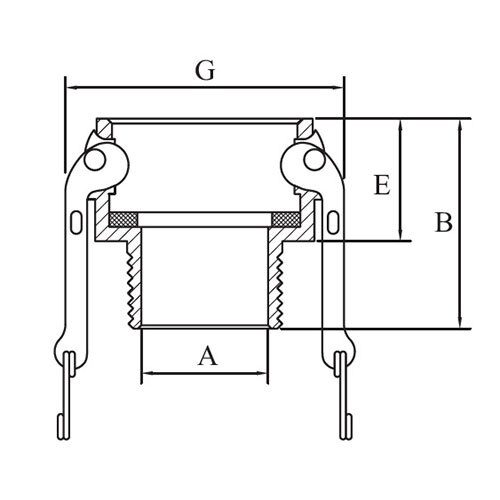

  • Hose Shank I.D (A) 14
  • Length (B) 48
  • Pipe Size (inch) 1/2
  • Distance Across Closed Cam Arms 53
  • Approx. Kg/pc 0.08
  • Adapter Length ( E ) 32
  • Pipe Size (mm) 15
  • Type Camlock Coupler
  • Fitting Material Finish Aluminium
  • Pipe Fitting Connection Female Camlock x Male BSP
SKU: A0077462 On Sale

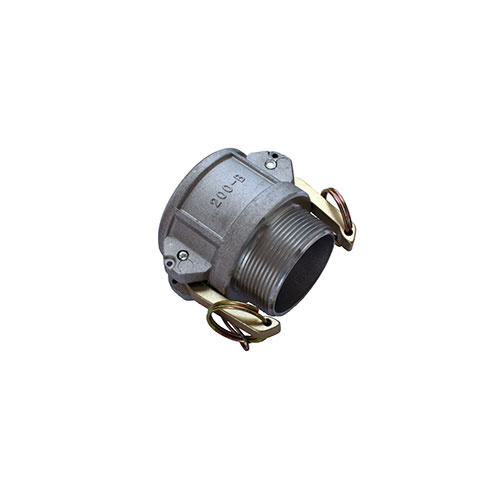

AAP 1/2" Aluminium Camlock Coupler Type-B Female x BSP Male CAL15B

AAP Camlock Coupler Aluminium Type B

$5.44
$6.40
