Description

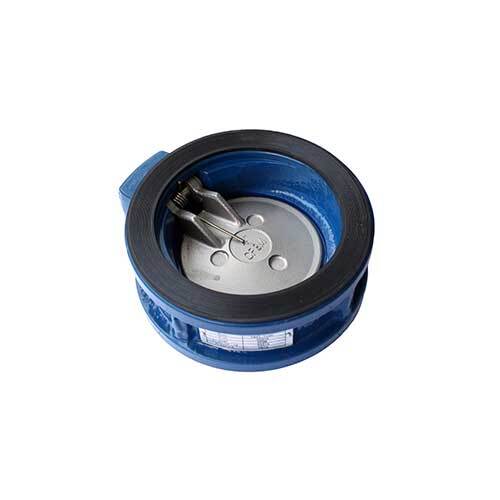

AAP Wafer Check Valve - Single Disc

Application:

  • Water, Air, Oil, Gas

Specifications:

  • Flange - AS2129 T/E
  • Cold Working Pressure - 1000kPa
  • Max Working Temperature - 120°C

Material Lists:

  • Body - Cast Iron
  • Spring - 316 Stainless Steel
  • Disc - 316 Stainless Steel
  • Seat -EPDM
  • Flange Gasket - NBR
  • Axle - 2Cr13

Specifications

  • AIMS SKU A0081251
  • Brand AAP
  • Model Number VWSC80

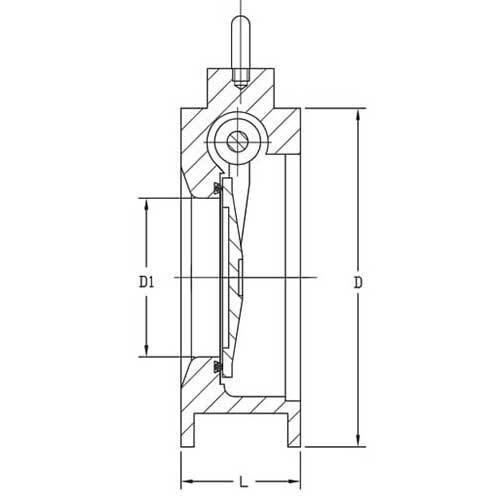

  • Valve Diameter (D) 128
  • Pipe Size (inch) 3
  • Valve Inner Diameter (d1) 52.4
  • Valve Length (l) 50.8
  • Approx Kg/pc 2.7
  • Pipe Size (mm) 80
  • Type Wafer Check Valve
  • Fitting Material Finish Cast Iron
SKU: A0081251

AAP 80mm, 3" Wafer Check Valve - Single Disc VWSC80

AAP Wafer Check Valve Single Disc

$126.95
