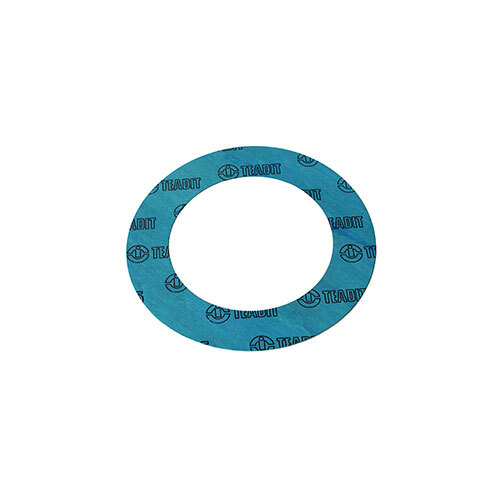

AAP 6" x 220mm Fiber Ring Gasket Class 150 LGR96

Description

Fiber Gaskets

AAP supplies compressed ffibregaskets made from Aramid fibres, bonded with Nitrile Rubber (NBR). It is manufactured by means of a hot calendar process under rigorous quality control standards that are registered under ISO 9001 certi?cation.

Working Conditions

Peak Temperature - + 400°C
Constant Temperature - + 240°C
Peak Pressure - up to 11000 kPa
Constant Working Pressure - 5000 kPa

Applications:

Air, Water, Low-pressure steam, petroleum derivatives, oil, gas, and general chemical products

Specifications

AIMS SKU A0081551

Brand AAP

Model Number LGR96

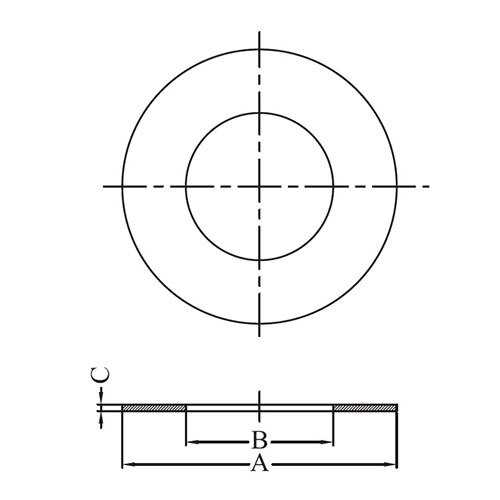

Thickness (C) 1.5

Pipe Size (inch) 6

Outer Diameter (A) mm 220

Inner Diameter (B) mm 167.28

Pipe Size (mm) 150

Type Fiber Ring Gasket

Calculate Shipping

Resources

AAP S5 Gaskets Catalogue
