AAP 6" Blind Flat Face Flange AS4087 PN16 - 4087BPN1696

Description

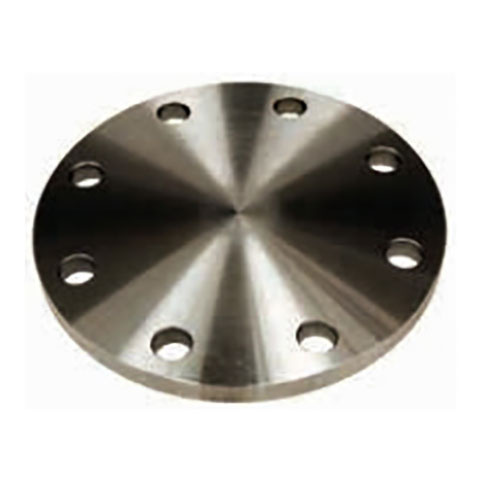

AAP Blind Flat-Faced Flange

Standard: AS4087 - Metallic flanges for Waterworks Purposes (Australian).
Application: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction.
Marking: All flanges when possible will display a heat number, size, table, grade, and dimensional standard.

About Plate Steel Flanges:

Plate flanges are mainly used for light-duty, flower pressure, or non-critical applications, commonly referring to AS2129, BS10, or AS4087 standards.
The manufacturing method involves cutting and machining from plate steel.

Specifications

AIMS SKU A0079070

Brand AAP

Model Number 4087BPN1696

Pipe Size (inch) 6"

Approx. Weight kg/pc 7.01

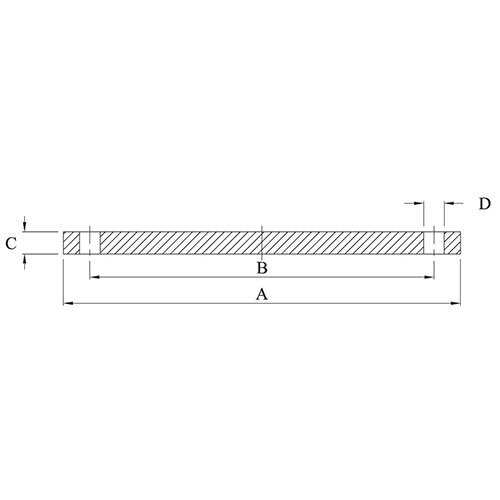

Flange Outside Diameter (A) 280

Drilling Bolt Circle Diameter (B) 235

Drilling No. Of Holes 8

Drilling Bolt Size M16

Type Blind Flat Faced Flange
