AAP 6-5/8" Slip-On Plate Steel Flange AS2129 Table-E SFPE96X

Description

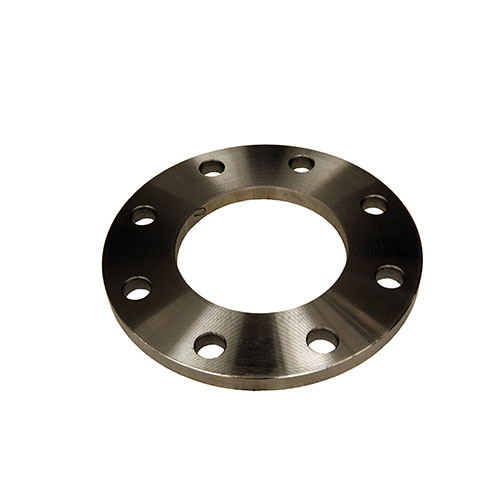

***Number of Holes may vary. The image is for illustration purposes only.***

AAP Slip-on Plate Flanges

Standard: AS2129 - Flanges for Pipes, Valves, and Fittings (Australian)
- *AS2129 is a replica of BS10 but is stated in mm rather than inches. In some sizes, bolt holes are slightly larger to give better clearance.

Application: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction.

Marking: All Flanges when possible will display a heat number, size, table, grade, and dimensional standard.

About Plate Steel Flanges:

Plate flanges are mainly used for light-duty, flower pressure, or non-critical applications, commonly referring to AS2129, BS10, or AS4087 standards.
The manufacturing method involves cutting and machining from plate steel.

Specifications

AIMS SKU A0078722

Brand AAP

Model Number SFPE96X

Pipe Size (inch) 6-5/8"

Approx. Weight kg/pc 4.7

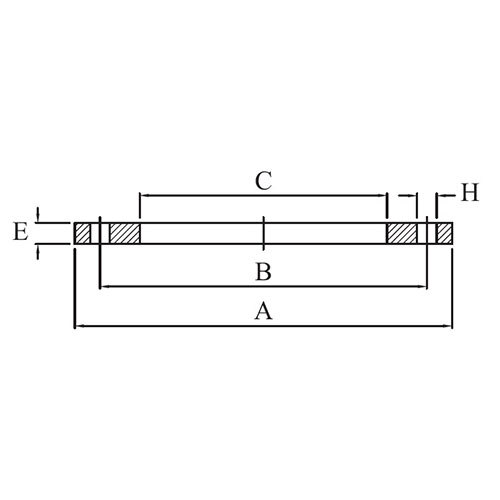

Flange Outside Diameter (A) 279

Flange Thickness (E) 17

Drilling Bolt Circle Diameter (B) 235

Drilling Holes Diameter (H) 22

Drilling No. Of Holes 8

Drilling Bolt Size M20

Bore Slip-on Socket Length (C) 170

Type Slip-on Weld Plate Flange

Calculate Shipping

Resources

AAP S4 Flanges Catalogue
