Description

Forged Steel Knife Gate Valve Class 800 (Socketweld)

Applications - Steam, Oil and Petro Chemical Industry



Specification

Design

ANSI B16.34

Socketweld

ASME B16.11

Cold Working Pressure

13800kPa

Max Working Temperature

427°C



Material List

PART

MATERIAL

Body

ASTM A105

Bonnet

ASTM A105

Wedge

ASTM A105

Gasket

Graphite

Disc

SS410 (2Cr13)

Seat

H/F Stellite

Specifications

  • AIMS SKU A0081665
  • Brand AAP
  • Model Number VGA800SW50
  • Pipe Size (inch) 2
  • Pipe Size (mm) 50
  • Approx. Kg/pc 9.7

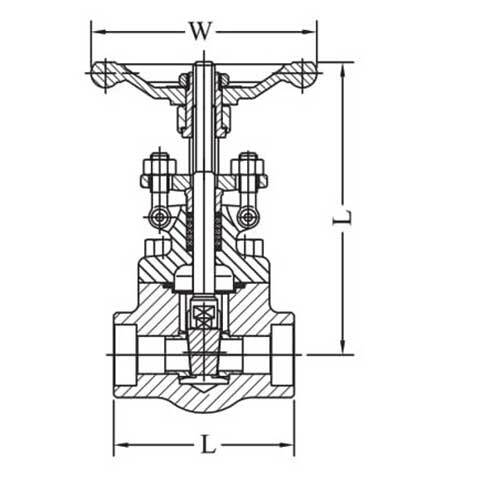

  • Height of handle from Valve (H) 290
  • Valve Handle Length (W) 138
  • Valve Length 127
  • Type Forged Steel Gate Valve
  • Fitting Material Finish Forged Steel
  • Fitting Schedule/class Class 800
  • Fitting Connectiom Socketweld
SKU: A0081665

AAP 50mm, 2" Forged Steel Gate Valve Socketweld Class 800 VGA800SW50

AAP Forged Steel Gate Valve Socketweld
