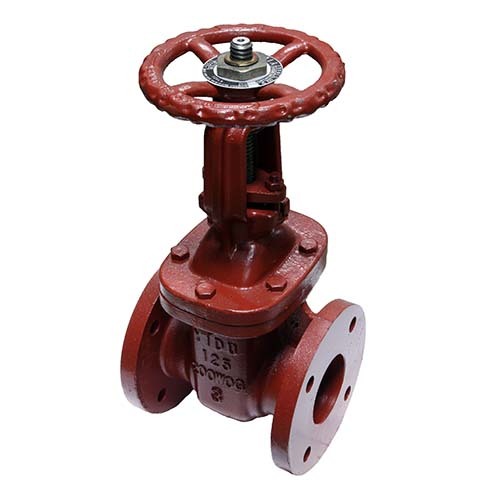

AAP 4" Cast Iron Flanged Gate Valve Rising Stem Table-E VCIGRS94E

Description

***Size 2" has a lead time of 20 weeks from receipt of the order. Contact AIMS for further assistance.***

Cast Iron Flanged Solid Wedge Disc Gate Valve Rising Stem

Applications

Water, Sewage, and neutral liquid applications

Specifications

Flange	AS2129
Max Temperature	200¬∞C
Cold Working Pressure	1379kPa

Materials

PART	MATERIAL
Body	Cast Iron
Seat Ring	Cast Bronze
Wedge Face Ring	Cast Bronze
Wedge	Cast Iron
Wedge Nut	Cast Bronze
Stem	Brass
Body Gasket	Graphite/Steel
Bonnet	Cast Iron
Stuffing Box Gasket	Teflon
Stuffing Box	Cast Iron
Packing	Teflon
Gland Follower	Ductile Iron
Yoke bushing	Cast Brass
Hand wheel	Cast Iron

Specifications

AIMS SKU A0081073

Brand AAP

Model Number VCIGRS94E

Pipe Size (inch) 4

Pipe Size (mm) 100

Approx. Kg/pc 50

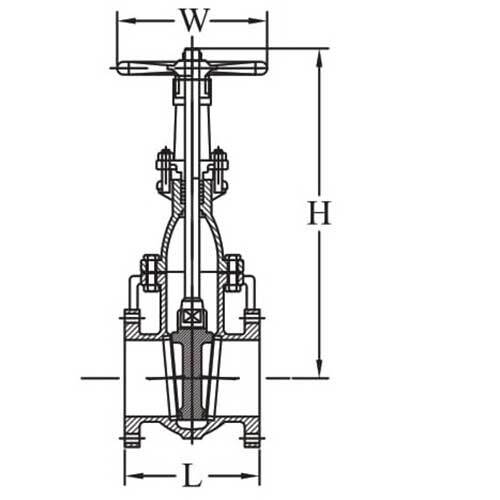

Height of handle from Valve (H) 490

Valve Handle Length (W) 254

Number of holes 8

Hole Diameter 18

Valve Length 229

Type Cast Iron Gate Valve
Fitting Material Finish Cast Iron
