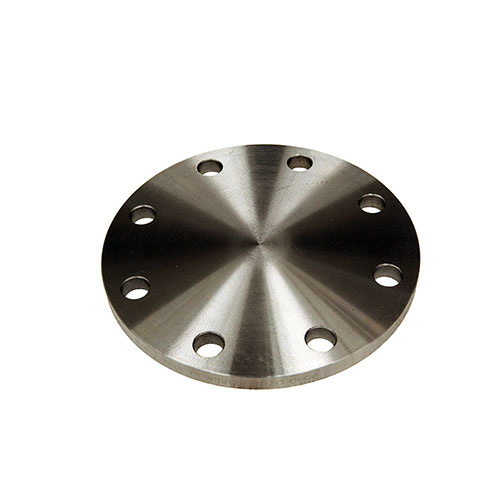

AAP 4" Blind Steel Plate Flange Table-E SFBE94

Description

Blind Plate Flanges

Standard: AS2129 - Flanges for Pipes, Valves, and Fittings (Australian)
- *AS2129 is a replica of BS10 but is stated in mm rather than inches. In some sizes, bolt holes are slightly larger to give better clearance

APPLICATION: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction.

MARKING: All Flanges when possible will display a heat number, size, table, grade, and dimensional standard

About Plate Steel Flanges:

Plate flanges are mainly used for light-duty, lower pressure, or non-critical applications, commonly referring to AS2129, BS10, or AS4087 standards.
The manufacturing method involves cFitting and machining from plate steel

Specifications

AIMS SKU A0078776

Brand AAP

Model Number SFBE94

Pipe Size (inch) 4"

Approx. Weight kg/pc 3.72

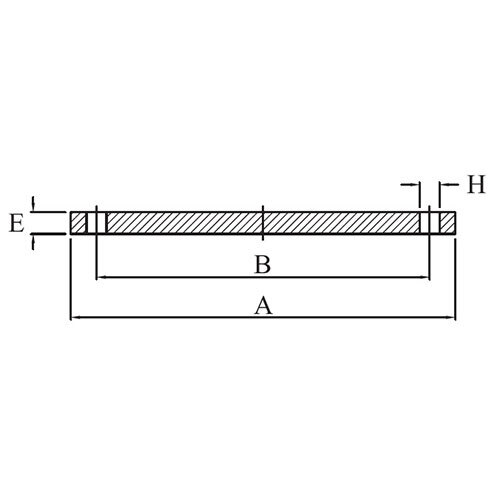

Flange Outside Diameter (A) 216

Flange Thickness (E) 13

Drilling Bolt Circle Diameter (B) 178

Drilling Holes Diameter (H) 18

Drilling No. Of Holes 8

Drilling Bolt Size M16

Type Blind Plate Flange
