Description

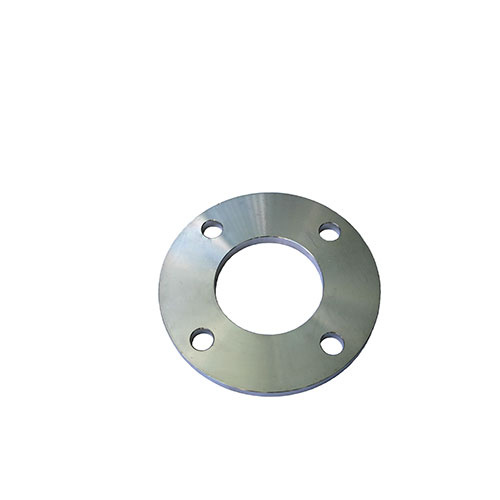

***Number of Holes may vary. The image is for illustration purposes only.***

AAP Slip On Flanges 316/316L SS 'Table E'

  • A Slip-On flange is used to connect two fillet welds.
  • Provide sufficient strength.
  • Prevents leakage.
  • Grade: 316 Stainless Steel.
  • Standard: BS10 Table E.
  • Pressure Rating: 13.87Bar.

Specifications

  • AIMS SKU A0080886
  • Brand AAP
  • Model Number SSFSE31694
  • Size 4"
  • Bolt Size M16
  • Number of holes 8
  • Hole Diameter 18
  • Approx Kg/pc 2.6

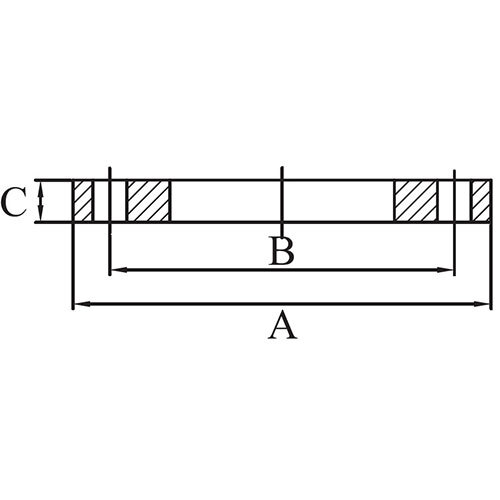

  • Dimension A (mm) 215
  • Dimension B (mm) 178
  • Dimension C (mm) 14
  • Size nb (mm) 102
  • Type Slip On Flange
  • Fitting Material 316 Stainless Steel
SKU: A0080886

AAP 4" Slip On Flanges 316/316L Stainless Steel - SSFSE31694

Slip On Flange - AAP

$148.24
