Description

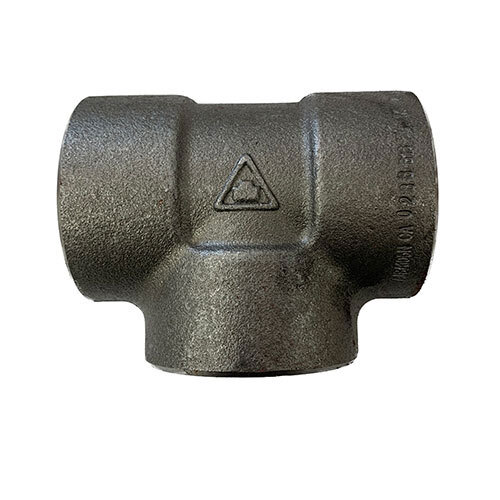

AAP Reducing Tee Socket Weld

(High-Pressure Fittings)

  • Rating: Socketweld End – 3000lbs
  • Standards: ANSI B16.11 (2009) - Forged Steel Fittings, Socket - Welding and Threaded
  • Marking:
    • Carbon and Alloy Steel – Market by Stamping
    • 3/8" and under: Brand only
    • 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size

Specifications

  • AIMS SKU A0079731
  • Brand AAP
  • Model Number PT3225S

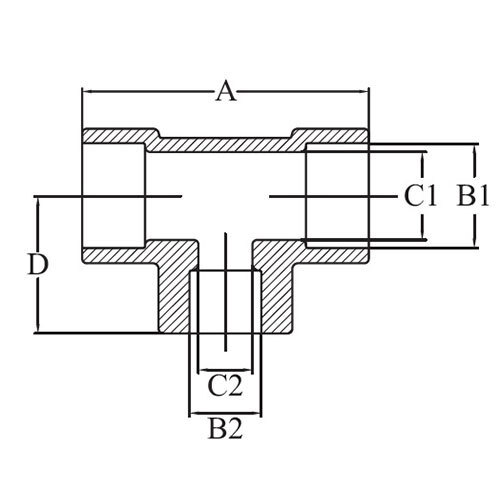

  • B 42.7
  • Length (A) 79
  • Pipe Size (inch) 1-1/4 x 1
  • Pipe Size (mm) 32 x 25
  • Approx. Kg/pc 1.2
  • C 34.3
  • D 39.5
  • Socket Bore Diameter (B) 43.1
  • Socket Bore Diameter (B2) 34.3
  • B2 33.9
  • Bore Diameter Of Fittings ( C ) 27.4
  • C2 25.9
  • Type Socket Weld Reducing Tee
  • Pipe Fitting Connection Socket Weld
SKU: A0079731

AAP 32 x 25mm High Pressure Reducing Tee Socket Weld PT3225S
