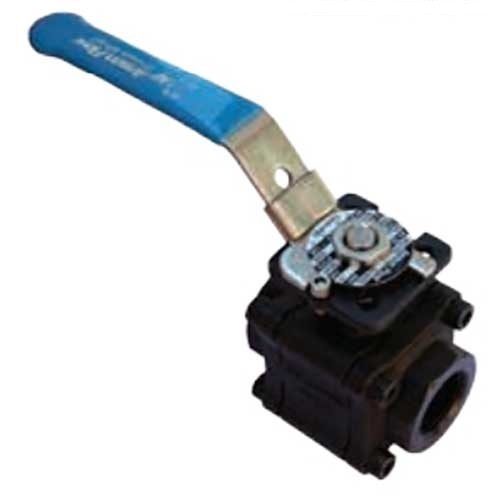

AAP 3/4" Ball Valve 3-PCE Class 800 Fire Safe Carbon Steel VBSFS20

Description

AAP Ball Valve Fire Safe

Applications: W.O.G.

Specifications

Thread (NPT)	ANSI B1.20.1
Cold Working Pressure	2000 PSI (13'789 kPa)
Max Working Temperature	200°C
Mounting Pad *	ISO 5211
Inspection and Testing	API 598
Face to Face/End to End	ASME B16.10

* 1/4" - 1/2" Not Direct Mounting

Materials

PART	CARBON STEEL
Body	ASTM A216 WCB
End Cap	ASTM A216 WCB
Ball	ASTM A351 CF8M/316
Seat	PTFE
Gasket	PTFE
Thrust Washer	PTFE
Stem Packing	Graphite
Gland	AISI 304
Belleville Washer	AISI 304
Stem	ASTM A276 316
Packing Nut	AISI 304
Spring Washer	AISI 304
Handle Nut	AISI 304
Bolt	ASTM A193 B7
Handle	Zinc Plated Steel
Handle Grip	Vinil Plastisol
Lock Saddle	AISI 304
O-Ring	Viton
Stopper Nut	Carbon Steel
Anti-Static Device	AISI 304

About Ball Valves:

A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
When the orifice is in line with both ends of the valve flow will occur.
When the valve is closed the orifice is perpendicular to the ends of the valve.
The lever/handle will be in line with the orifice position, an indication of the valve position.

Specifications

AIMS SKU A0078693

Brand AAP

Model Number VBSFS20

Pipe Size (inch) 3/4

Pipe Size (mm) 20

Approx. Kg/pc 1.6

F 11

Valve Length (l) 80

Height of handle from Valve (H) 90

Valve Handle Length (W) 180

Valve Diameter (D) 20.5

Iso 5211 F04-F05

E 11

G 52

Type Ball Valve
Fitting Material Finish Carbon Steel
Fitting Schedule/class Class 800
