Description

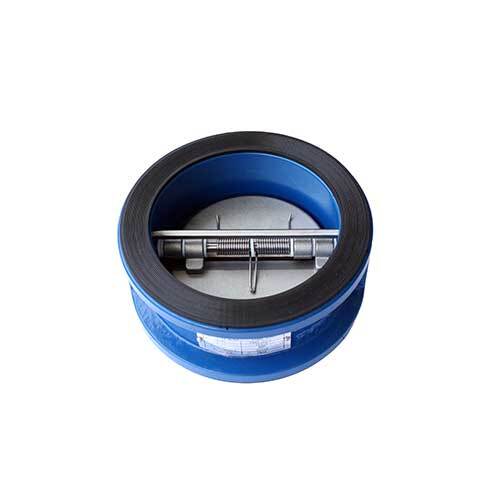

AAP Wafer Check Valve - Dual Disc

Application:

  • Water, Air, Gas

 Specifications:

  • Flange - AS2129 T/E
  • Cold Working Pressure - 1600kPa
  • Max Working Temperature - 80°C

 Material Lists:

  • Body - Cast   Iron
  • Spring - 316 Stainless Steel
  • Disc - 316 Stainless Steel
  • Seat - NBR
  • Shaft 1 - 316 Stainless Steel
  • Shaft 2 - 316 Stainless Steel
  • Flange Gasket - NBR

Specifications

  • AIMS SKU A0081242
  • Brand AAP
  • Model Number VWCX25
  • Pipe Size (inch) 10
  • Pipe Size (mm) 250

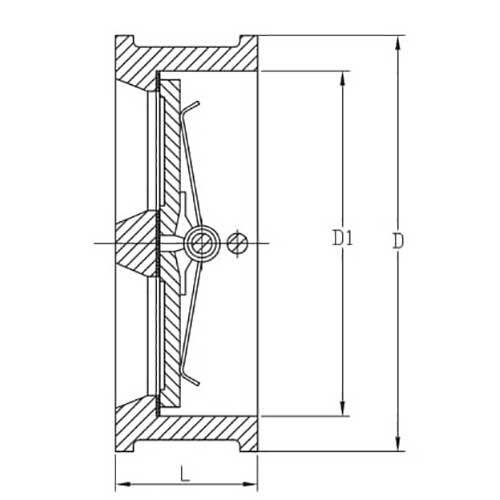

  • Valve Length (l) 114
  • Valve Diameter (D) 333
  • Approx Kg/pc 22
  • Valve Inner Diameter (d1) 265
  • Type Wafer Check Valve
  • Fitting Material Finish Cast Iron
SKU: A0081242

AAP 250mm, 10" Wafer Check Valve - Dual Disc VWCX25

AAP Wafer Check Valve Dual Disc

$772.68
