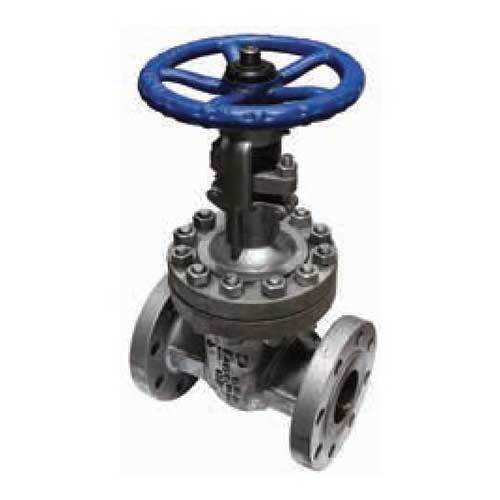

AAP 250mm, 10" Cast Steel Flanged Gate Valve ANSI 150 VGA150X25

Description

Cast Steel Flanged Gate Valve ANSI 150 & 300

Applications - Petrochemical, Refinery, Chemical, Pharmaceutical Power

Specification
Flange Dimensions		ANSI B16.5
MAX Working Temperature	Class 150	300°C
	Class 300	440°C
Cold Working Pressure	Class 150	1960kPa
	Class 300	5100kPa

Materials
PART	MATERIAL
Body	ASTM A216 WCB
Seat Ring	ASTM + H/F Stellite
Wedge	ASTM A216 WCB+13Cr
Stem	ASTM A276 T410
Bonnet Gasket	13Cr+Graphite
Bonnet	ASTM A216 WCB
Back Seat Bushing	ASTM A276 T410
Packing	Graphite
Packing Gland	ASTM A276 T410
Gland Follower	ASTM A216 WCB
Oil Cup	Brass
Stem Nut Bushing	Carbon Steel
Hand wheel	ASTM A536

Specifications

AIMS SKU A0081093

Brand AAP

Model Number VGA150X25

Pipe Size (inch) 10

Pipe Size (mm) 250

Approx. Kg/pc 220

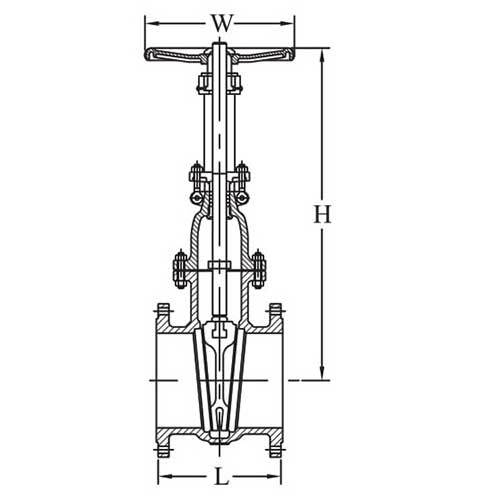

Height of handle from Valve (H) 922

Valve Handle Length (W) 400

Number of holes 12

Hole Diameter 26

Valve Length 330.2

Type Cast Steel Gate Valve
Fitting Material Finish Cast Steel
Fitting Schedule/class ANSI 150
Fitting Connectiom Socketweld
