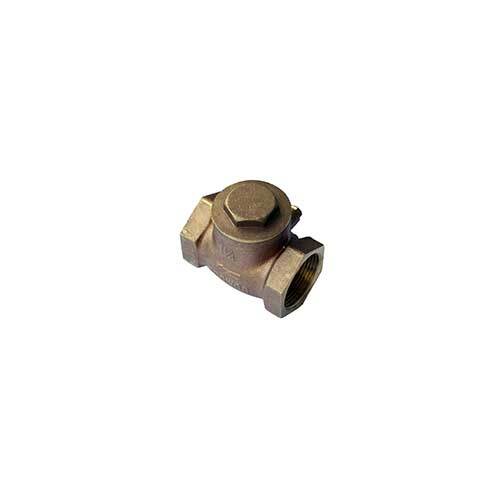

AAP 20mm, 3/4" Brass Swing Check Valve VBCS20

Description

AAP Brass Swing Check Valve

Swing Check valves are used where the flow moves through the valve in approximately a straight line similar to that in a gate valve, which is commonly used in pipelines conveying liquids by gravity or pumping.
The check mechanism of the design incorporates a disc that swings on a hinge.

Specifications:

Thread - AS1722.1
Cold Working Pressure - 1380kPa
Max Working Temperature - 200°C

Material List:

Body - Brass
Bonnet - Brass
Hinge Pin-Nut - Brass

Specifications

AIMS SKU A0080503

Brand AAP

Model Number VBCS20

Pipe Size (inch) 3/4

Pipe Size (mm) 20

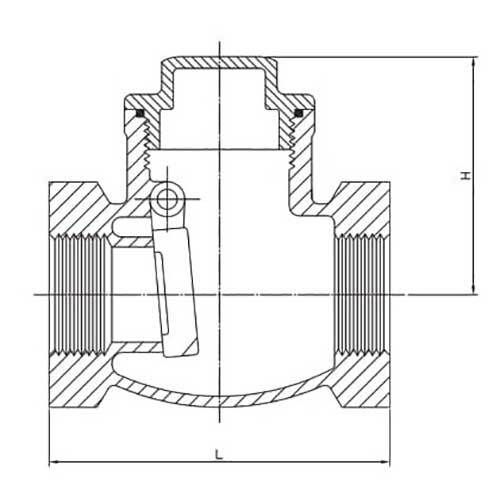

Valve Length (l) 60

Height of handle from Valve (H) 37

Approx Kg/pc 0.26

Type Swing Check Valve
Fitting Material Finish Brass
