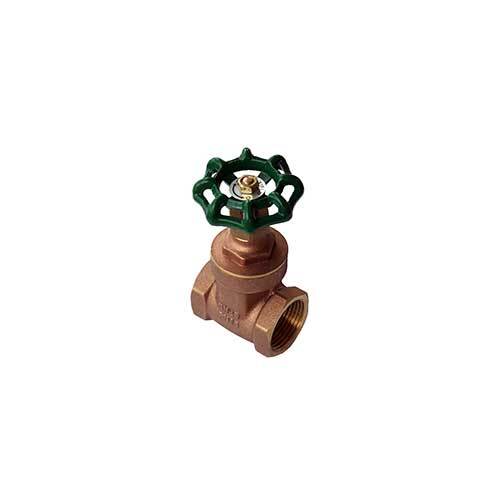

AAP 20mm, 3/4" Brass Gate Valve General Purpose VBGTT20

Description

AAP Brass Gate Valve General Purpose

The wedge gate valve provides an uninterrupted passage for the flow of fluid. Body ends are inline and the gate is moved between body seats by a spindle, whose axis is at right angles to that of the body ends.
It may be either inside screw, in which the actuating thread of the spindle is contained inside the valve and thus in contact with the line fluid, or outside screw, in which the actuating thread of the spindle is exterior to the bonnet.
The valve is used extensively where a straight flow is required with minimum pressure drop.
It is not recommended for flow regulation and should only be used fully opened or closed.

General Purpose Brass Gate Valve

Specifications
Thread	ISO 228
MAX Working Temperature	180°C
Cold Working Pressure	1600kPa

Materials
PART	MATERIAL
Body	Brass
Bonnet	Brass
Wedge	Brass
Stem	Brass
Hand Wheel	Ductile Iron
Threading	ISO 228

Specifications

AIMS SKU A0080429

Brand AAP

Model Number VBGTT20

Pipe Size (inch) 3/4

Pipe Size (mm) 20

Approx. Kg/pc 0.36

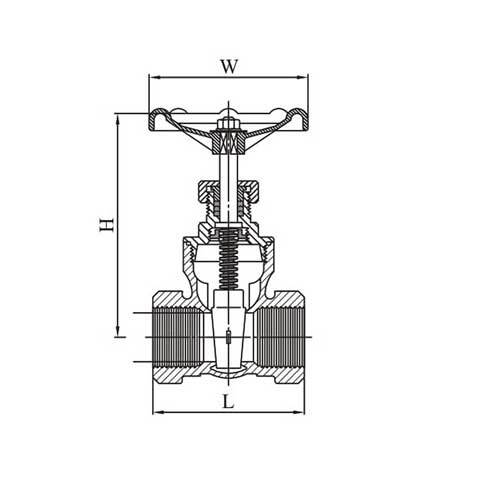

Height of handle from Valve (H) 100

Valve Handle Length (W) 50

Valve Length 48

Type Brass Gate Valve
Fitting Material Finish Brass

Calculate Shipping

Resources

AAP S17 Gate Valves Catalogue
