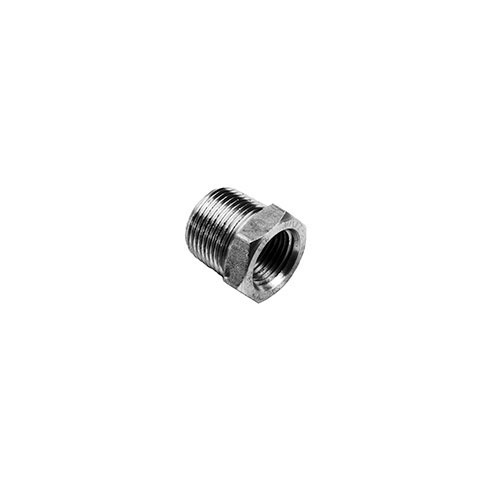

AAP Hexagon Bush - NPT Stainless 316

(High-Pressure Fittings)

  • Rating: Threaded End – 3000lbs
  • Standards:
    • ANSI B16.11 (2009) - Forged Steel Fittings, Socket - Welding and Threaded
    • ASTM A182/A182M-12a - Standard specification for Forged or Rolled Alloy and Stainless Steel Forged Fittings
  • Threads: ANSI B1.20.1 – American National Standard Taper Thread (NPT)
  • Marking:
    • Carbon and Alloy Steel – Market by Stamping
    • 3/8" and under: Brand only
    • 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size

Specifications

  • AIMS SKU A0079856
  • Brand AAP
  • Model Number PSTB2015

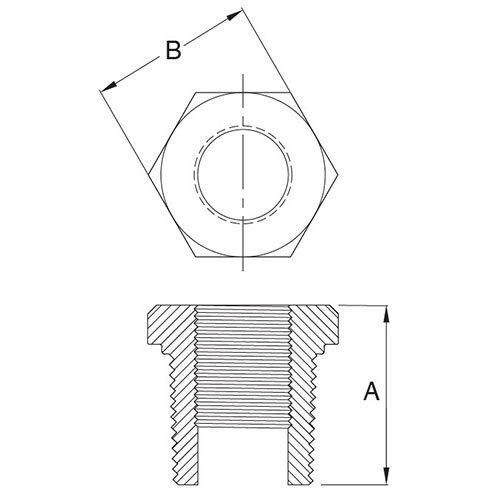

  • B 27
  • Length (A) 22
  • Pipe Size (inch) 3/4 x 1/2
  • Pipe Size (mm) 20 x 15
  • Approx. Kg/pc 0.06
  • Type Hex Head Bush
  • Fitting Thread Form NPT
  • Pipe Fitting Material Finish 316 Stainless Steel
SKU: A0079856

AAP 20 x 15mm High Pressure Hexagon Head Bush NPT Stainless 316 PSTB2015

AAP - Hexagon Head Bush

$18.93
RRP $35.33
SAVE $16.40 (46%)
