Description

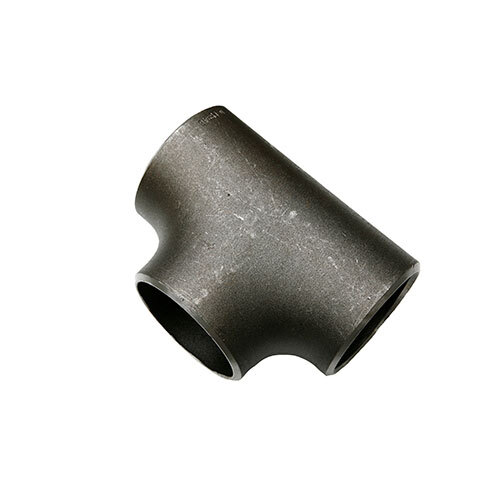

AAP Reducing Tee Buttweld Std

Specification

  • AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.
  • The advantages of Buttweld include:
    • Welding a Fitting to the pipe means it is permanently leak
    • The continuous metal structure formed between pipe and Fitting adds strength to the
    • Smoother inner surface and gradual direction changes reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion
    • A welded system utilizes a minimum of space.

Specifications

  • AIMS SKU A0078305
  • Brand AAP
  • Model Number WT6550
  • Pipe Size (inch) 2-1/2 x 2
  • Wall Thickness 5.2
  • Approx. Weight kg/pc 1.9

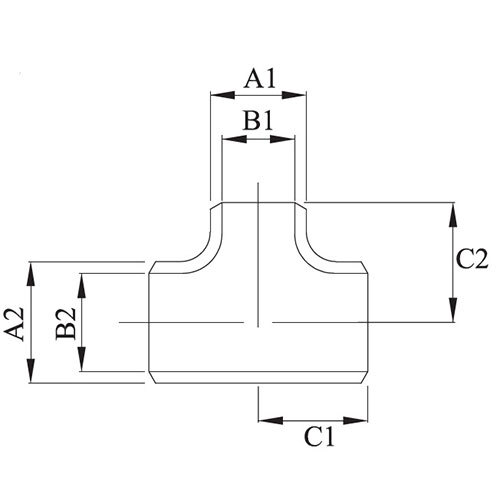

  • Larger Diameter (A1) mm 73
  • Larger Diameter (A2) mm 62.6
  • Smaller Diameter (B1) mm 60.3
  • Smaller Diameter (B2) mm 52.5
  • Center To End (C1) mm 76.2
  • Center To End (C2) mm 69.8
  • Type Reducing Tee
  • Pipe Fitting Connection Buttweld
SKU: A0078305

AAP 2-1/2" x 2" Reducing Tee Buttweld STD ASTM A234 WT6550

AAP - Tee - Buttweld

$40.50
RRP $77.89
SAVE $37.39 (48%)
