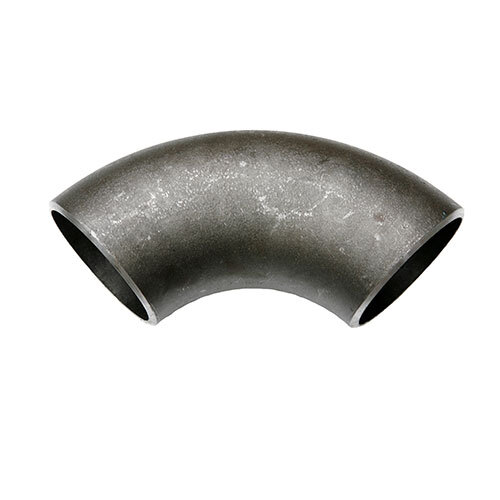

AAP 2-1/2" Long Radius 90° Elbow Buttweld X-Stg ASTM A234 WE65X

Description

AAP 90° Long Radius Elbow Buttweld X-Stg

Specification

AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.
The advantages of Buttweld include:
- Welding a Fitting to the pipe means it is permanently leak
- The continuous metal structure formed between pipe and Fitting adds strength to the
- The smoother inner surface and gradual direction changes reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion
- A welded system utilizes a minimum of space.

Specifications

AIMS SKU A0078466

Brand AAP

Model Number WE65X

Pipe Size (inch) 2-1/2

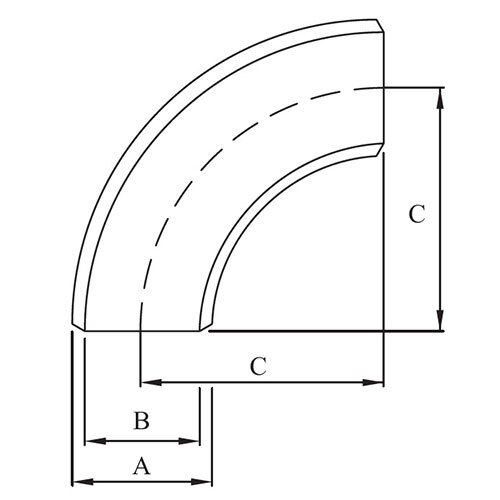

Outer Diameter (A) mm 73

Inner Diameter (B) mm 58.98

Center To End (C) mm 95.2

Wall Thickness 7

Approx. Weight kg/pc 1.8

Type Long Radius Elbow
Pipe Fitting Connection Buttweld
Specific Fitting Shape 90deg
