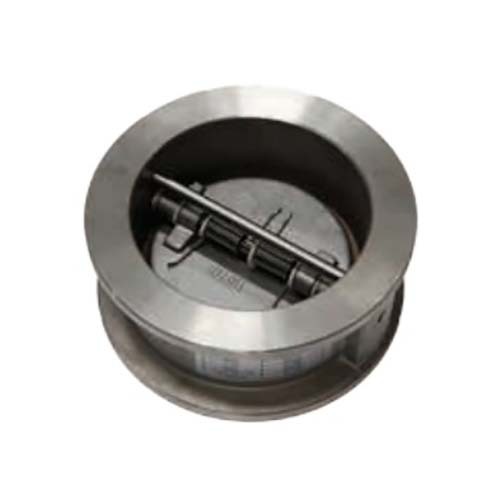

AAP Stainless Steel Wafer Check Valve Dual Disc

Application:

  • Water, Air, Gas, High-Pressure Liquids

Specifications:

  • Flange: ANSI B16.5
  • Cold Working Pressure: 2000KPa
  • Max Working Temperature: -20 ~ 135°C

Material List:

  • Body - CF8M
  • Spring - 316 Stainless Steel
  • Disc - CF8M
  • Seat - Viton
  • Shaft 1 - 316 Stainless Steel
  • Shaft 2 - 316 Stainless Steel
  • Gasket - PTFE

Specifications

  • AIMS SKU A0081266
  • Brand AAP
  • Model Number VWCSS96A
  • Pipe Size (inch) 6
  • Pipe Size (mm) 150

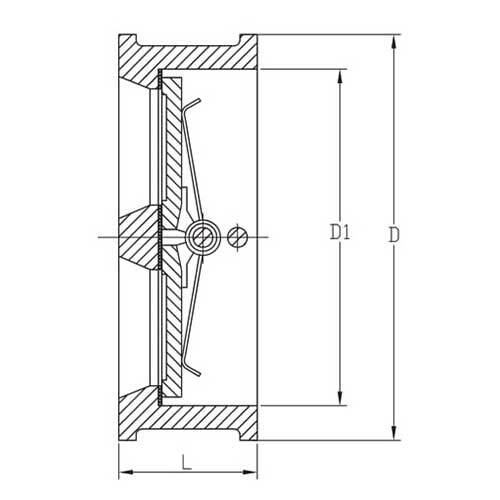

  • Valve Length (l) 76
  • Valve Diameter (D) 219
  • Approx Kg/pc 8.5
  • Valve Inner Diameter (d1) 170
  • Type Wafer Check Valve
  • Fitting Material Finish 316 Stainless Steel
SKU: A0081266

AAP 150mm, 6" 316 Stainless Steel Wafer Check Valve Dual Disc VWCSS96A

AAP Wafer Check Valve Dual Disc

$1,069.60
