Description

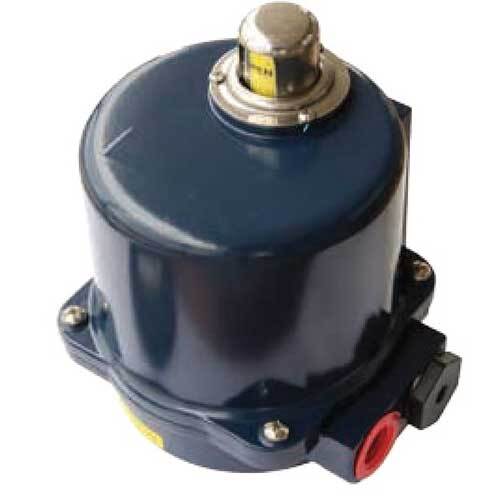

OM-4 Electric Actuator

  • A combination of motor that can create a movement of the load, or an action requiring a force such as clamping, using an electric motor to create the necessary force.
  • When the electric motor is operating, the hand-wheel won’t rotate for personal safety purposes.
  • Torque Range: 35 Nm - 150Nm

Specifications

  • AIMS SKU A0081026
  • Brand AAP
  • Model Number VOM412VDC
  • Torque (Nm) 400

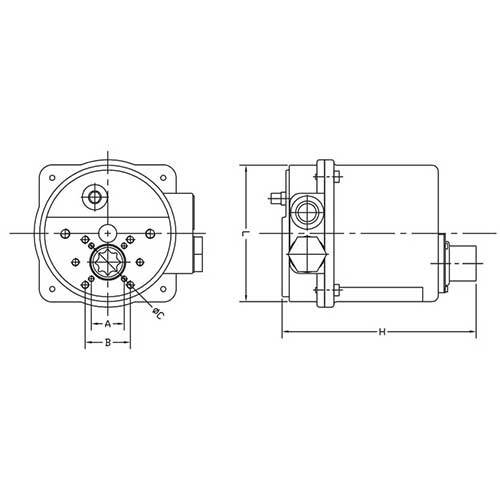

  • B 72
  • Approx. Kg/pc 17.5
  • C 46
  • A -
  • H 310
  • Volts 12
  • AC/DC DC
  • L 300
  • Power (watts) 120
  • Speed (Sec/90 deg) 22
  • Type Electric Actuator
SKU: A0081026

AAP 12V DC OM-4 Electric Actuator VOM412VDC

AAP Electric Actuator

$2,178.64
RRP $5,446.58
SAVE $3,267.94 (60%)
