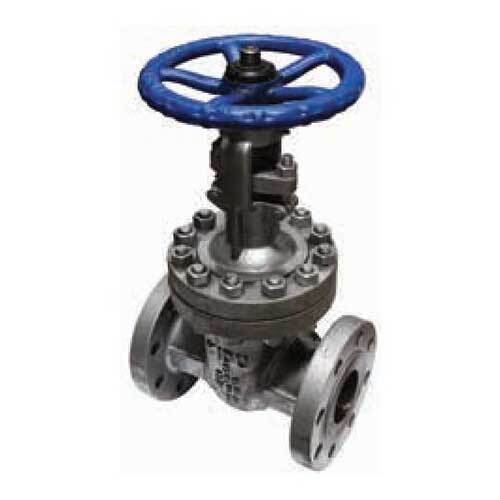

AAP 125mm, 5" Cast Steel Flanged Gate Valve ANSI 150 VGA15095

Description

Cast Steel Flanged Gate Valve ANSI 150 & 300

Applications - Petrochemical, Refinery, Chemical, Pharmaceutical Power

Specification
Flange Dimensions		ANSI B16.5
MAX Working Temperature	Class 150	300°C
	Class 300	440°C
Cold Working Pressure	Class 150	1960kPa
	Class 300	5100kPa

Materials
PART	MATERIAL
Body	ASTM A216 WCB
Seat Ring	ASTM + H/F Stellite
Wedge	ASTM A216 WCB+13Cr
Stem	ASTM A276 T410
Bonnet Gasket	13Cr+Graphite
Bonnet	ASTM A216 WCB
Back Seat Bushing	ASTM A276 T410
Packing	Graphite
Packing Gland	ASTM A276 T410
Gland Follower	ASTM A216 WCB
Oil Cup	Brass
Stem Nut Bushing	Carbon Steel
Hand wheel	ASTM A536

Specifications

AIMS SKU A0081090

Brand AAP

Model Number VGA15095

Pipe Size (inch) 5

Pipe Size (mm) 125

Approx. Kg/pc 71

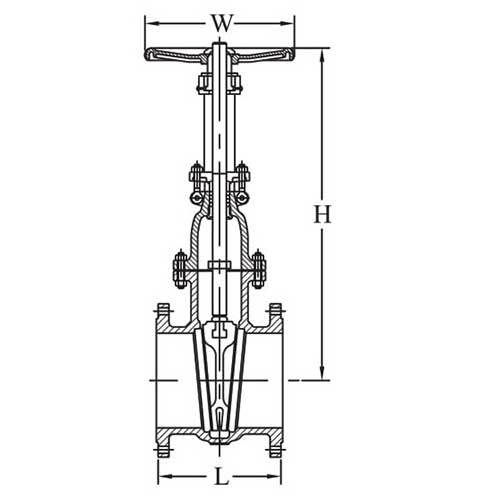

Height of handle from Valve (H) 676

Valve Handle Length (W) 300

Number of holes 8

Hole Diameter 22

Valve Length 254

Type Cast Steel Gate Valve
Fitting Material Finish Cast Steel
Fitting Schedule/class ANSI 150
Fitting Connectiom Socketweld
